Visualization in TorchEBM

Data visualization is an essential tool for understanding, analyzing, and communicating the behavior of energy-based models. This guide covers various visualization techniques available in TorchEBM to help you gain insights into energy landscapes, sampling processes, and model performance.

Energy Landscape Visualization

Visualizing energy landscapes is crucial for understanding the structure of the probability distribution you're working with. TorchEBM provides utilities to create both 2D and 3D visualizations of models.

Basic Energy Landscape Visualization

Here's a simple example to visualize a 2D model:

import torch
import numpy as np
import matplotlib.pyplot as plt
from torchebm.core import DoubleWellModel

model = DoubleWellModel(barrier_height=2.0)

x = np.linspace(-3, 3, 100)
y = np.linspace(-3, 3, 100)
X, Y = np.meshgrid(x, y)
Z = np.zeros_like(X)

for i in range(X.shape[0]):
    for j in range(X.shape[1]):
        point = torch.tensor([X[i, j], Y[i, j]], dtype=torch.float32).unsqueeze(0)
        Z[i, j] = model(point).item()
fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, projection='3d')
surf = ax.plot_surface(X, Y, Z, cmap='viridis', alpha=0.8)
ax.set_xlabel('x')
ax.set_ylabel('y')
ax.set_zlabel('Energy')
ax.set_title('Double Well Energy Landscape')
plt.colorbar(surf, ax=ax, shrink=0.5, aspect=5)
plt.tight_layout()
plt.show()

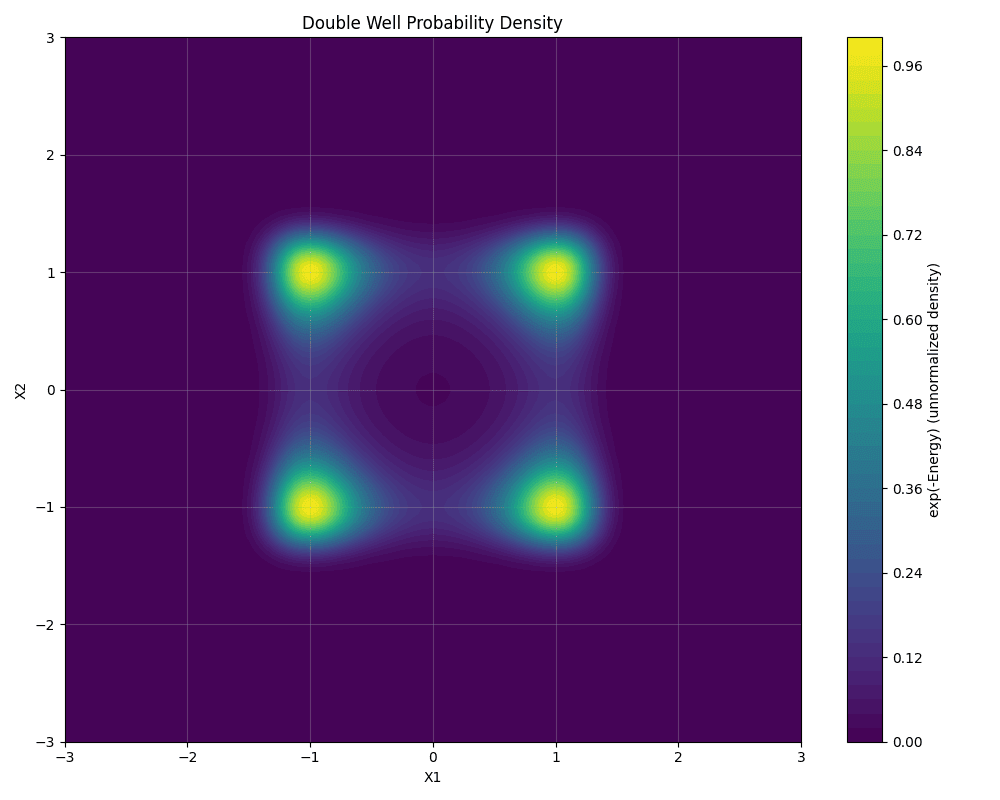

Visualizing Energy as Probability Density

Often, it's more intuitive to visualize the probability density (exp(-Energy)) rather than the energy itself:

import torch
import numpy as np
import matplotlib.pyplot as plt
from torchebm.core import DoubleWellModel

model = DoubleWellModel(barrier_height=2.0)

grid_size = 100
plot_range = 3.0
x_coords = np.linspace(-plot_range, plot_range, grid_size)
y_coords = np.linspace(-plot_range, plot_range, grid_size)
X, Y = np.meshgrid(x_coords, y_coords)
Z = np.zeros_like(X)

for i in range(X.shape[0]):
    for j in range(X.shape[1]):
        point = torch.tensor([X[i, j], Y[i, j]], dtype=torch.float32).unsqueeze(0)
        Z[i, j] = model(point).item()

log_prob_values = -Z
log_prob_values = log_prob_values - np.max(log_prob_values)
prob_density = np.exp(log_prob_values)
plt.figure(figsize=(10, 8))
contour = plt.contourf(X, Y, prob_density, levels=50, cmap='viridis')
plt.colorbar(label='exp(-Energy) (unnormalized density)')
plt.xlabel('X1')
plt.ylabel('X2')
plt.title('Double Well Probability Density')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Sampling Trajectory Visualization

Visualizing the trajectory of sampling algorithms can provide insights into their behavior and convergence properties.

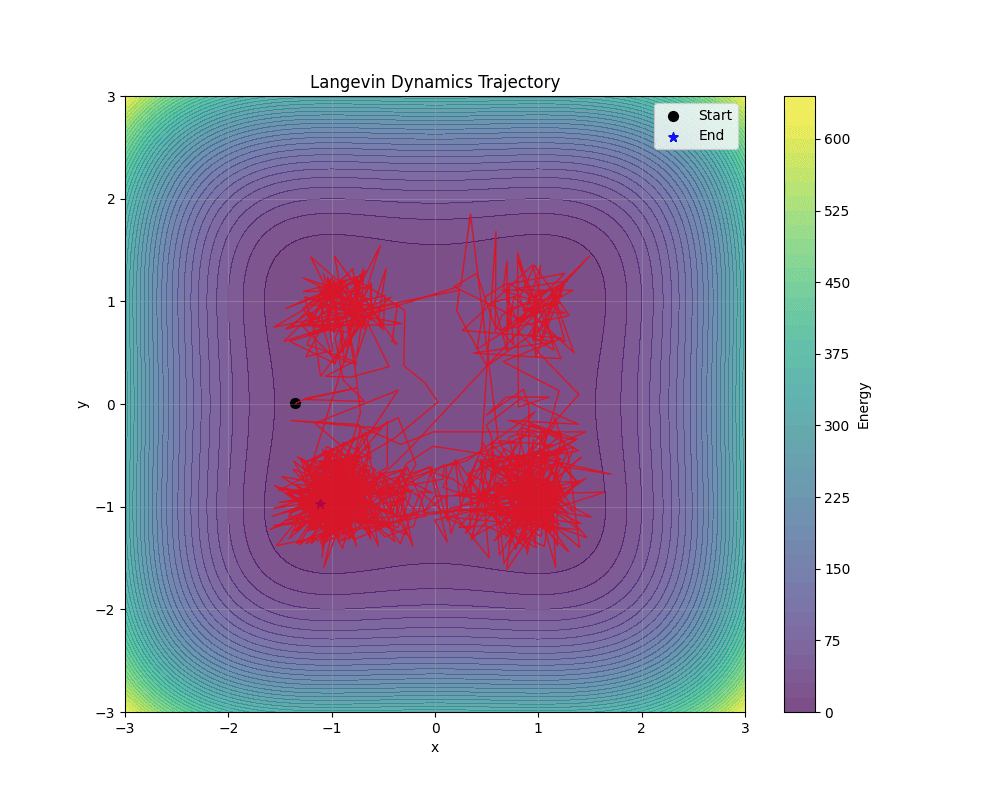

Visualizing Langevin Dynamics Trajectories

from torchebm.core import DoubleWellModel, LinearScheduler, WarmupScheduler
from torchebm.samplers import LangevinDynamics

model = DoubleWellModel(barrier_height=5.0)

scheduler_linear = LinearScheduler(
    initial_value=0.05,
    final_value=0.03,
    total_steps=100
)

scheduler = WarmupScheduler(
    main_scheduler=scheduler_linear,
    warmup_steps=10,
    warmup_init_factor=0.01
)

sampler = LangevinDynamics(
    model=model,
    step_size=scheduler

)

initial_point = torch.tensor([[-2.0, 0.0]], dtype=torch.float32)

trajectory = sampler.sample(
    x=initial_point,
    dim=2,
    n_steps=1000,
    return_trajectory=True
)

x = np.linspace(-3, 3, 100)
y = np.linspace(-3, 3, 100)
X, Y = np.meshgrid(x, y)
Z = np.zeros_like(X)

for i in range(X.shape[0]):
    for j in range(X.shape[1]):
        point = torch.tensor([X[i, j], Y[i, j]], dtype=torch.float32).unsqueeze(0)
        Z[i, j] = model(point).item()

plt.figure(figsize=(10, 8))
plt.contourf(X, Y, Z, 50, cmap='viridis', alpha=0.7)
plt.colorbar(label='Energy')

traj_x = trajectory[0, :, 0].numpy()
traj_y = trajectory[0, :, 1].numpy()

plt.plot(traj_x, traj_y, 'r-', linewidth=1, alpha=0.7)
plt.scatter(traj_x[0], traj_y[0], c='black', s=50, marker='o', label='Start')
plt.scatter(traj_x[-1], traj_y[-1], c='blue', s=50, marker='*', label='End')

plt.xlabel('x')
plt.ylabel('y')
plt.title('Langevin Dynamics Trajectory')
plt.legend()
plt.grid(True, alpha=0.3)
plt.savefig('langevin_trajectory.png')
plt.show()

Visualizing Multiple Chains

import torch
import numpy as np
import matplotlib.pyplot as plt
from torchebm.core import RastriginModel
from torchebm.samplers import LangevinDynamics

torch.manual_seed(44)
np.random.seed(43)

model = RastriginModel(a=10.0)
sampler = LangevinDynamics(
    model=model,
    step_size=0.008
)

dim = 2
n_steps = 1000
num_chains = 5

initial_points = torch.randn(num_chains, dim) * 3

trajectories = sampler.sample(
    x=initial_points,
    dim=dim,
    n_samples=num_chains,
    n_steps=n_steps,
    return_trajectory=True
)

x = np.linspace(-5, 5, 100)
y = np.linspace(-5, 5, 100)
X, Y = np.meshgrid(x, y)
Z = np.zeros_like(X)
print(trajectories.shape)

for i in range(X.shape[0]):
    for j in range(X.shape[1]):
        point = torch.tensor([X[i, j], Y[i, j]], dtype=torch.float32).unsqueeze(0)
        Z[i, j] = model(point).item()

plt.figure(figsize=(12, 10))
contour = plt.contourf(X, Y, Z, 50, cmap='viridis', alpha=0.7)
plt.colorbar(label='Energy')

colors = ['red', 'blue', 'green', 'orange', 'purple']
for i in range(num_chains):
    traj_x = trajectories[i, :, 0].numpy()
    traj_y = trajectories[i, :, 1].numpy()

    plt.plot(traj_x, traj_y, alpha=0.7, linewidth=1, c=colors[i],
             label=f'Chain {i + 1}')

    plt.scatter(traj_x[0], traj_y[0], c='black', s=50, marker='o')
    plt.scatter(traj_x[-1], traj_y[-1], c=colors[i], s=100, marker='*')

plt.xlabel('x')
plt.ylabel('y')
plt.title('Multiple Langevin Dynamics Sampling Chains on Rastrigin Potential')
plt.legend()
plt.tight_layout()
plt.savefig('multiple_chains.png')
plt.show()

Distribution Visualization

Visualizing the distribution of samples can help assess the quality of your sampling algorithm.

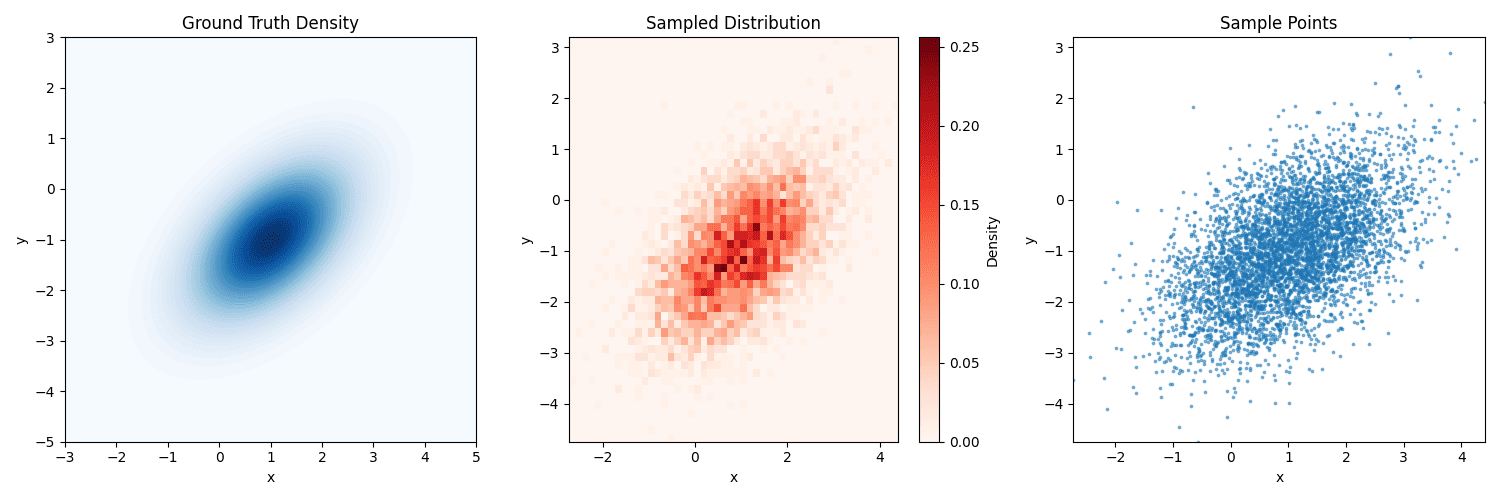

Comparing Generated Samples with Ground Truth

import torch
import numpy as np
import matplotlib.pyplot as plt
from scipy import stats
from torchebm.core import GaussianModel
from torchebm.samplers import LangevinDynamics

mean = torch.tensor([1.0, -1.0])
cov = torch.tensor([[1.0, 0.5], [0.5, 1.0]])
model = GaussianModel(mean=mean, cov=cov)

sampler = LangevinDynamics(
    model=model,
    step_size=0.01
)

n_samples = 5000
burn_in = 200

x = torch.randn(n_samples, 2)

samples = sampler.sample(
    x=x,
    n_steps=1000,
    burn_in=burn_in,
    return_trajectory=False
)

samples_np = samples.numpy()
mean_np = mean.numpy()
cov_np = cov.numpy()

x = np.linspace(-3, 5, 100)
y = np.linspace(-5, 3, 100)
X, Y = np.meshgrid(x, y)
pos = np.dstack((X, Y))

rv = stats.multivariate_normal(mean_np, cov_np)
Z = rv.pdf(pos)

fig = plt.figure(figsize=(15, 5))

ax1 = fig.add_subplot(131)
ax1.contourf(X, Y, Z, 50, cmap='Blues')
ax1.set_title('Ground Truth Density')
ax1.set_xlabel('x')
ax1.set_ylabel('y')

ax2 = fig.add_subplot(132)
h = ax2.hist2d(samples_np[:, 0], samples_np[:, 1], bins=50, cmap='Reds', density=True)
plt.colorbar(h[3], ax=ax2, label='Density')
ax2.set_title('Sampled Distribution')
ax2.set_xlabel('x')
ax2.set_ylabel('y')

ax3 = fig.add_subplot(133)
ax3.scatter(samples_np[:, 0], samples_np[:, 1], alpha=0.5, s=3)
ax3.set_title('Sample Points')
ax3.set_xlabel('x')
ax3.set_ylabel('y')
ax3.set_xlim(ax2.get_xlim())
ax3.set_ylim(ax2.get_ylim())

plt.tight_layout()
plt.savefig('distribution_comparison_updated.png')
plt.show()

Energy Evolution Visualization

Tracking how energy values evolve during sampling can help assess convergence.

import numpy as np
import torch
import matplotlib.pyplot as plt
from torchebm.core import DoubleWellModel, GaussianModel, CosineScheduler
from torchebm.samplers import LangevinDynamics


SAMPLER_STEP_SIZE = CosineScheduler(
    initial_value=1e-2, final_value=1e-3, total_steps=50
)

SAMPLER_NOISE_SCALE = CosineScheduler(
    initial_value=2e-1, final_value=1e-2, total_steps=50
)

model = GaussianModel(mean=torch.tensor([0.0, 0.0]), cov=torch.eye(2) * 0.5)
sampler = LangevinDynamics(
    model=model,
    step_size=SAMPLER_STEP_SIZE,
    noise_scale=SAMPLER_NOISE_SCALE
)

dim = 2
n_steps = 200
initial_point = torch.tensor([[-2.0, 0.0]], dtype=torch.float32)

energy_values = []
current_sample = initial_point.clone()

for i in range(n_steps):
    noise = torch.randn_like(current_sample)
    current_sample = sampler.langevin_step(current_sample, noise)
    energy_values.append(model(current_sample).item())

energy_values_np = np.array(energy_values)

plt.figure(figsize=(10, 6))
plt.plot(energy_values_np)
plt.xlabel('Step')
plt.ylabel('Energy')
plt.title('Energy Evolution During Langevin Dynamics Sampling')
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('energy_evolution_updated.png')
plt.show()

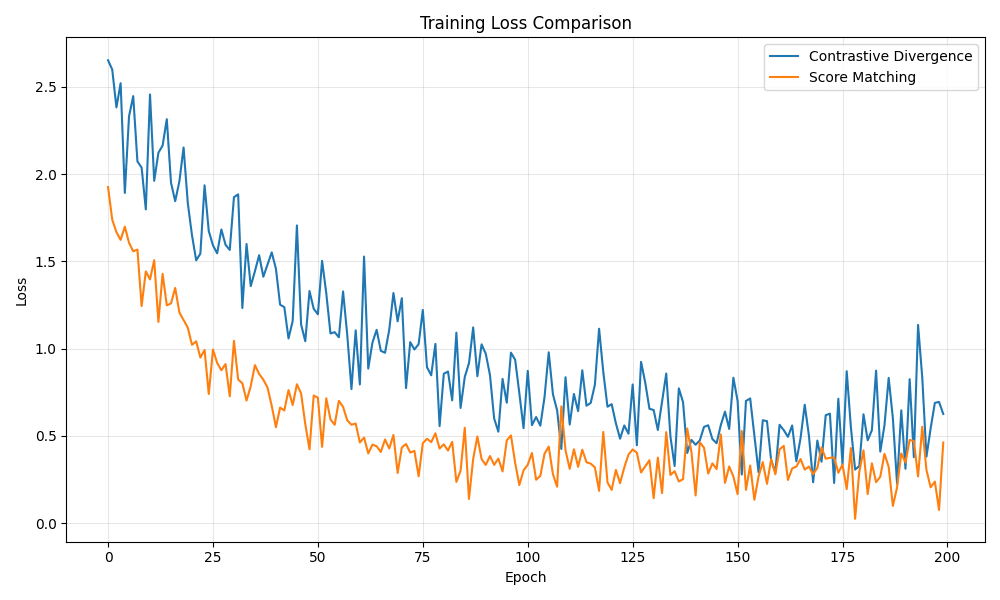

Visualizing Training Progress with Different Loss Functions

You can also visualize how different loss functions affect the training dynamics:

import torch
import numpy as np
import matplotlib.pyplot as plt
from torchebm.core import BaseModel
from torchebm.losses import ContrastiveDivergence, ScoreMatching
from torchebm.samplers import LangevinDynamics
from torchebm.datasets import TwoMoonsDataset
import torch.nn as nn
import torch.optim as optim

class MLPModel(BaseModel):
    def __init__(self, input_dim, hidden_dim=64):
        super().__init__()
        self.network = nn.Sequential(
            nn.Linear(input_dim, hidden_dim),
            nn.SELU(),
            nn.Linear(hidden_dim, hidden_dim),
            nn.SELU(),
            nn.Linear(hidden_dim, 1)
        )

    def forward(self, x):
        return self.network(x).squeeze(-1)

def train_and_record_loss(loss_type, n_epochs=100):
    model = MLPModel(input_dim=2, hidden_dim=32).to(device)

    sampler = LangevinDynamics(
        model=model,
        step_size=0.1,
        device=device
    )

    if loss_type == 'CD':
        loss_fn = ContrastiveDivergence(
            model=model,
            sampler=sampler,
            k_steps=10,
            persistent=True
        )
    elif loss_type == 'SM':
        loss_fn = ScoreMatching(
            model=model,
            hutchinson_samples=5
        )

    optimizer = optim.Adam(model.parameters(), lr=0.001)

    losses = []

    for epoch in range(n_epochs):
        epoch_loss = 0.0
        for batch in dataloader:
            optimizer.zero_grad()
            loss = loss_fn(batch)
            loss.backward()
            optimizer.step()
            epoch_loss += loss.item()

        avg_loss = epoch_loss / len(dataloader)
        losses.append(avg_loss)
        if (epoch + 1) % 10 == 0:
            print(f"{loss_type} - Epoch {epoch+1}/{n_epochs}, Loss: {avg_loss:.4f}")

    return losses

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
dataset = TwoMoonsDataset(n_samples=1000, noise=0.1, device=device)
dataloader = torch.utils.data.DataLoader(dataset, batch_size=64, shuffle=True)

cd_losses = train_and_record_loss('CD')
sm_losses = train_and_record_loss('SM')

plt.figure(figsize=(10, 6))
plt.plot(cd_losses, label='Contrastive Divergence')
plt.plot(sm_losses, label='Score Matching')
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.title('Training Loss Comparison')
plt.legend()
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('loss_comparison.png')
plt.show()

Conclusion

Effective visualization is key to understanding and debugging energy-based models. TorchEBM provides tools for visualizing energy landscapes, sampling trajectories, and model performance. These visualizations can help you gain insights into your models and improve their design and performance.

Remember to adapt these examples to your specific needs - you might want to visualize higher-dimensional spaces using dimensionality reduction techniques, or create specialized plots for your particular application.
