Visualization in TorchEBM

Visualizing the behavior of energy-based models is essential for understanding and debugging them. This guide covers key visualization techniques for EBMs, focusing on energy landscapes and sampler trajectories.

Visualizing 2D Energy Landscapes

For models that operate on 2D data, we can directly visualize the energy function as a surface or contour plot. This shows us where the model has learned to assign low energy (high probability).

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
import torch
import numpy as np
import matplotlib.pyplot as plt
from torchebm.core import DoubleWellModel

model = DoubleWellModel(barrier_height=2.0)

x = np.linspace(-2, 2, 100)
y = np.linspace(-2, 2, 100)
X, Y = np.meshgrid(x, y)
grid_points = torch.tensor(np.stack([X.flatten(), Y.flatten()], axis=1), dtype=torch.float32)

with torch.no_grad():
    energy_values = model(grid_points).numpy().reshape(X.shape)

plt.figure(figsize=(8, 6))
plt.contourf(X, Y, energy_values, levels=50, cmap='viridis')
plt.colorbar(label='Energy')
plt.title('Energy Landscape of a Double Well Model')
plt.show()

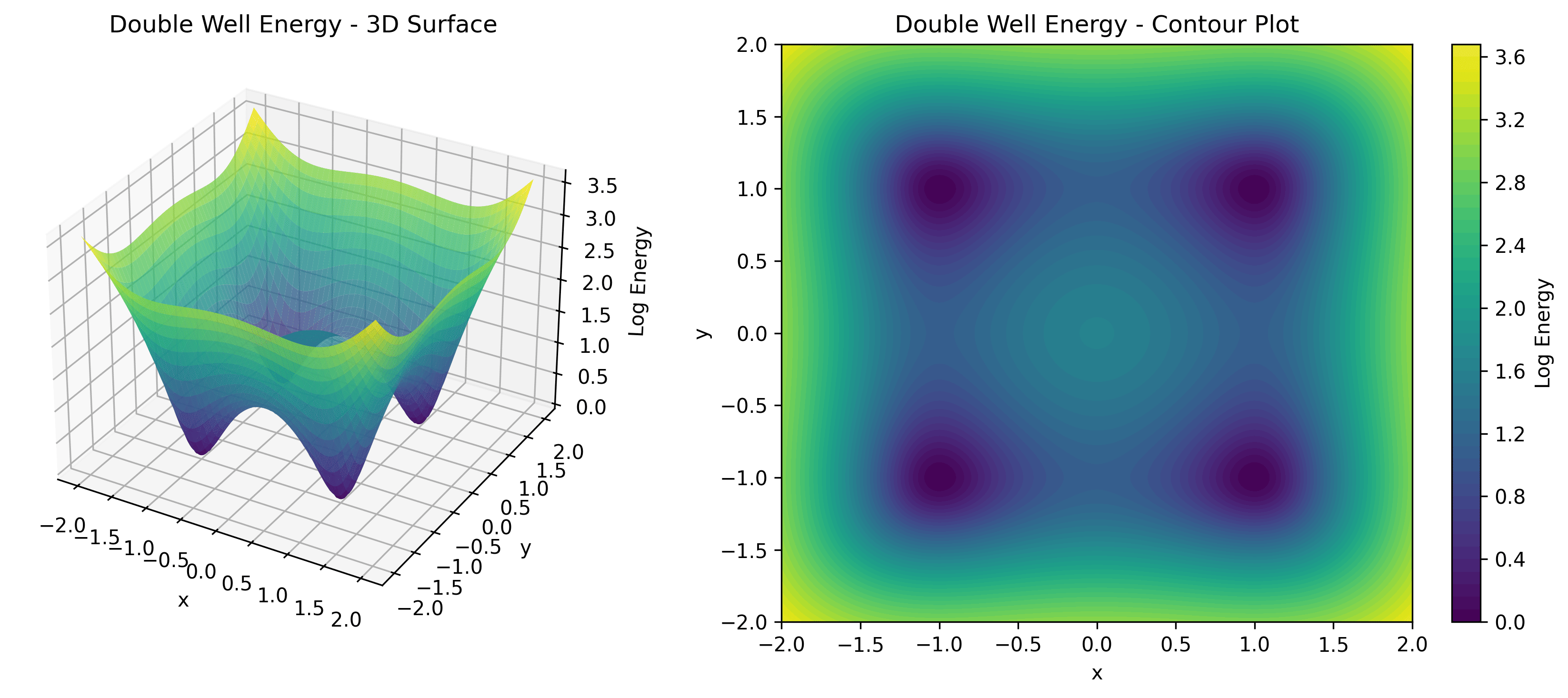

Double Well Energy Function

A 2D contour plot of the `DoubleWellModel` energy landscape.

Visualizing Sampling Trajectories

To understand how samplers explore the state space, we can plot their trajectories on top of the energy landscape. This is particularly insightful for complex, multimodal distributions.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
from torchebm.samplers import LangevinDynamics
from torchebm.core import MultimodalModel # A custom model with 4 modes

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = MultimodalModel().to(device)
sampler = LangevinDynamics(model=model, step_size=0.1)

initial_particles = torch.zeros(5, 2, device=device) # 5 chains starting at the origin
trajectory = sampler.sample(x=initial_particles, n_steps=200, return_trajectory=True)

# Plotting (on top of the energy landscape from the previous example)
# (Contour plot code omitted for brevity)
colors = plt.cm.viridis(np.linspace(0, 1, 5))
for i in range(5):
    traj_chain = trajectory[i].cpu().numpy()
    plt.plot(traj_chain[:, 0], traj_chain[:, 1], color=colors[i], alpha=0.7)
    plt.scatter(traj_chain[0, 0], traj_chain[0, 1], color='red', s=50, zorder=3) # Start
    plt.scatter(traj_chain[-1, 0], traj_chain[-1, 1], color='blue', s=50, zorder=3) # End
plt.show()

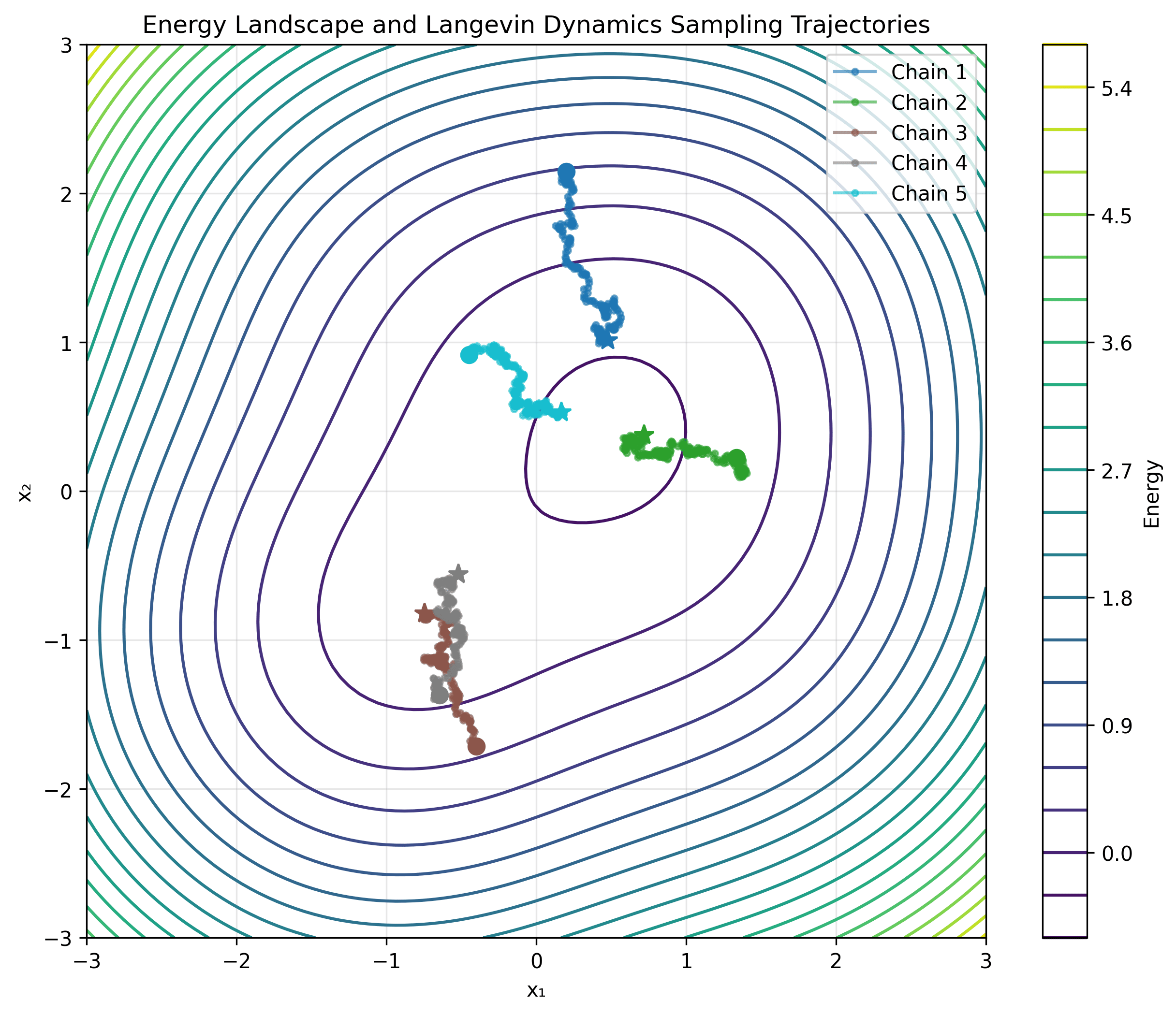

Langevin Dynamics Sampling Trajectories

Trajectories of five Langevin Dynamics chains exploring a multimodal landscape.

Comparing Ground Truth and Model Samples

A critical evaluation is to compare the distribution of samples from the trained model against the real data distribution.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# Assume `model_samples` are generated from a trained model
# Assume `real_samples` are from the dataset
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 6))

ax1.set_title("Real Data Distribution")
ax1.scatter(real_samples[:, 0], real_samples[:, 1], s=10, alpha=0.5)

ax2.set_title("Model Sample Distribution")
ax2.scatter(model_samples[:, 0], model_samples[:, 1], s=10, alpha=0.5, c='red')

plt.show()
This side-by-side comparison provides a quick qualitative assessment of how well the model has learned the target distribution. For more quantitative measures, you can use metrics like Maximum Mean Discrepancy (MMD) or analyze summary statistics.
