Working with Datasets

TorchEBM includes a suite of synthetic datasets primarily for 2D distributions, which are invaluable for testing models and algorithms. These are available in the torchebm.datasets module and are implemented as standard PyTorch Dataset classes, making them fully compatible with DataLoader.

Synthetic 2D Datasets

These datasets are useful for visualizing how an EBM learns complex, multimodal distributions.

import torch
import numpy as np
import matplotlib.pyplot as plt
from torch.utils.data import DataLoader
from torchebm.datasets import (
    GaussianMixtureDataset, EightGaussiansDataset, TwoMoonsDataset,
    SwissRollDataset, CircleDataset, CheckerboardDataset,
    PinwheelDataset, GridDataset
)

def plot_datasets(datasets, titles):
    fig, axes = plt.subplots(2, 4, figsize=(20, 10))
    axes = axes.flatten()
    for i, (data, title) in enumerate(zip(datasets, titles)):
        ax = axes[i]
        ax.scatter(data[:, 0], data[:, 1], s=5, alpha=0.7)
        ax.set_title(title)
        ax.grid(True, alpha=0.3)
        ax.axis('equal')
    plt.tight_layout()
    plt.show()

n_samples = 1000
seed = 42

datasets_to_plot = [
    GaussianMixtureDataset(n_samples=n_samples, n_components=8, std=0.07, radius=1.5, seed=seed).get_data(),
    EightGaussiansDataset(n_samples=n_samples, std=0.05, scale=2.0, seed=seed).get_data(),
    TwoMoonsDataset(n_samples=n_samples, noise=0.1, seed=seed).get_data(),
    SwissRollDataset(n_samples=n_samples, noise=0.1, arclength=3.0, seed=seed).get_data(),
    CircleDataset(n_samples=n_samples, noise=0.05, radius=1.0, seed=seed).get_data(),
    CheckerboardDataset(n_samples=n_samples, range_limit=4.0, noise=0.05, seed=seed).get_data(),
    PinwheelDataset(n_samples=n_samples, n_classes=5, noise=0.05, seed=seed).get_data(),
    GridDataset(n_samples_per_dim=30, range_limit=2.0, noise=0.02, seed=seed).get_data()
]
dataset_titles = [
    "Gaussian Mixture", "Eight Gaussians", "Two Moons", "Swiss Roll",
    "Circle", "Checkerboard", "Pinwheel", "2D Grid"
]

plot_datasets(datasets_to_plot, dataset_titles)

• Gaussian Mixture

  ---



  A mixture of eight distinct Gaussian distributions arranged in a circle.

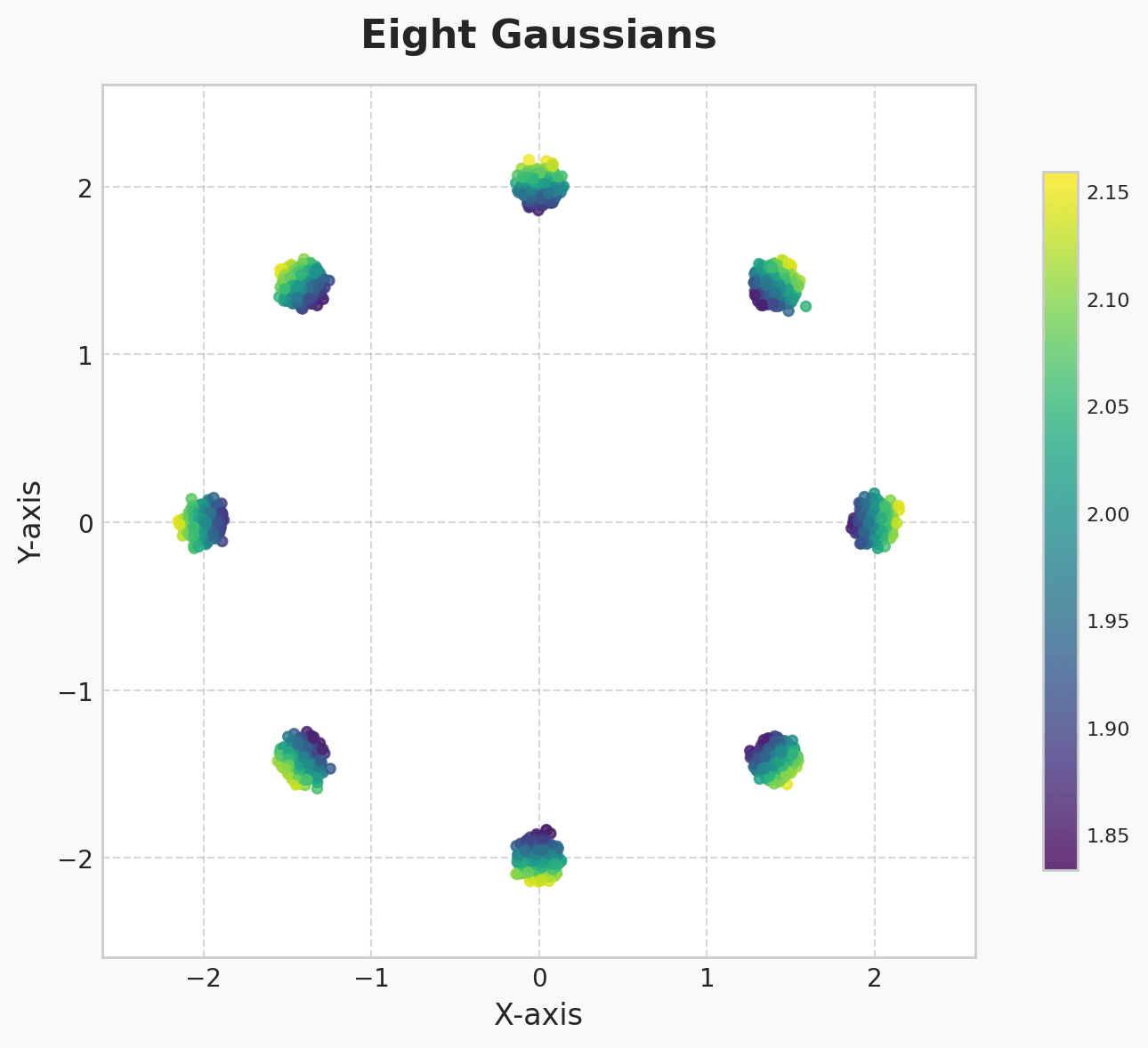

• Eight Gaussians

  ---



  A classic synthetic dataset with eight Gaussian modes in a circular pattern.

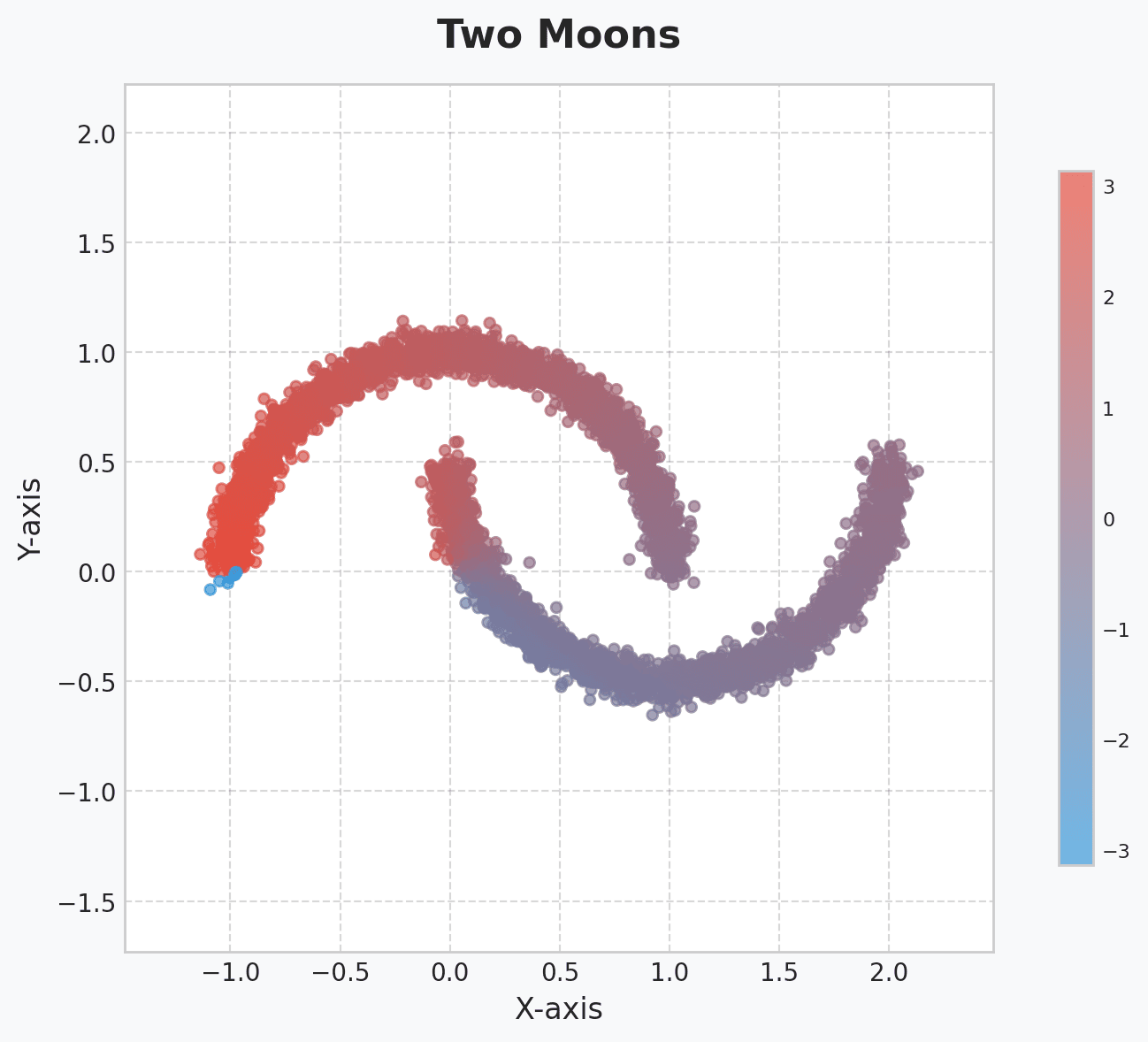

• Two Moons

  ---



  Two interleaving half-circles, a common benchmark for nonlinear distributions.

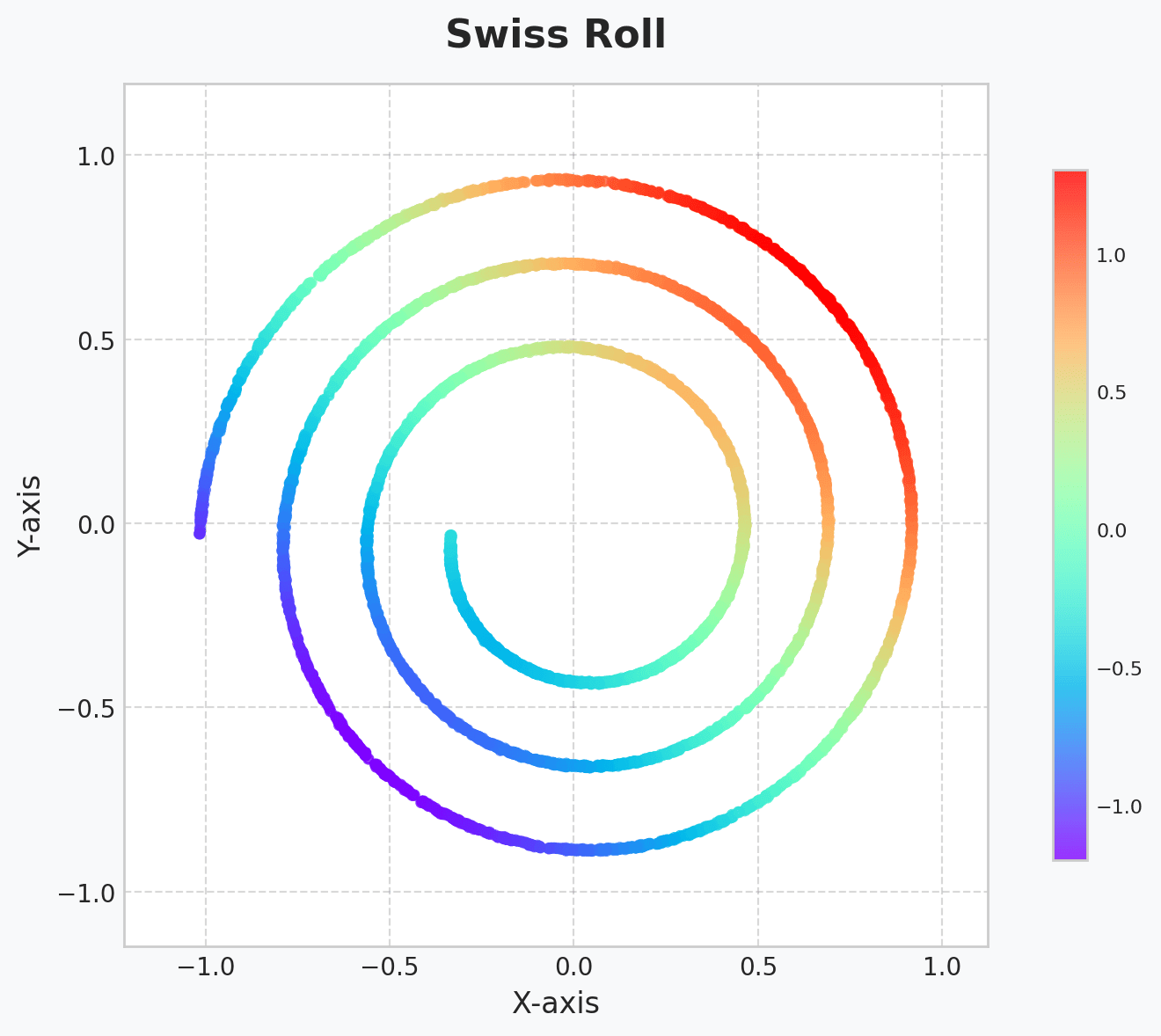

• Swiss Roll

  ---



  A spiral-shaped manifold, useful for testing manifold learning algorithms.

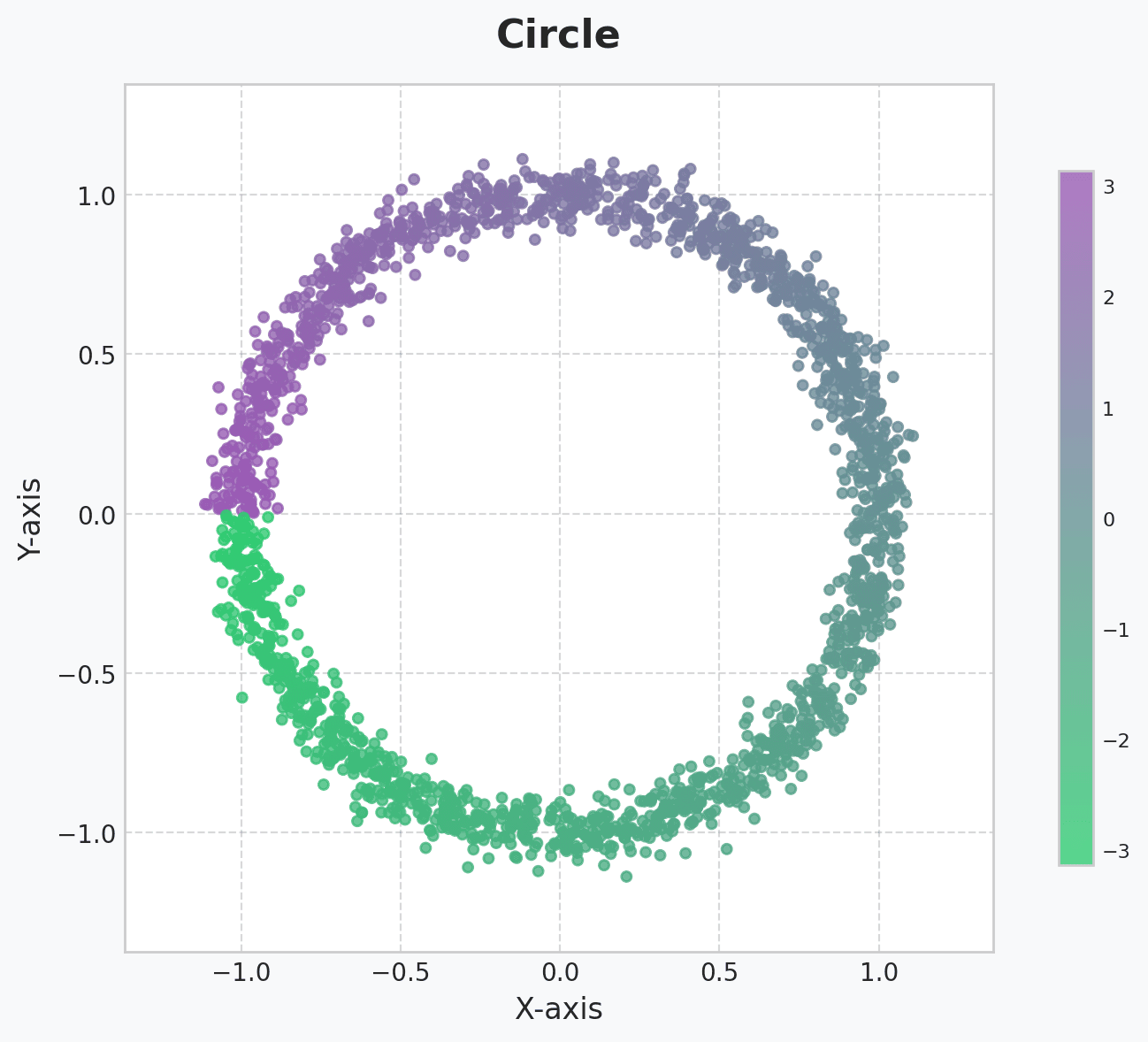

• Circle

  ---



  Data points distributed on the circumference of a circle.

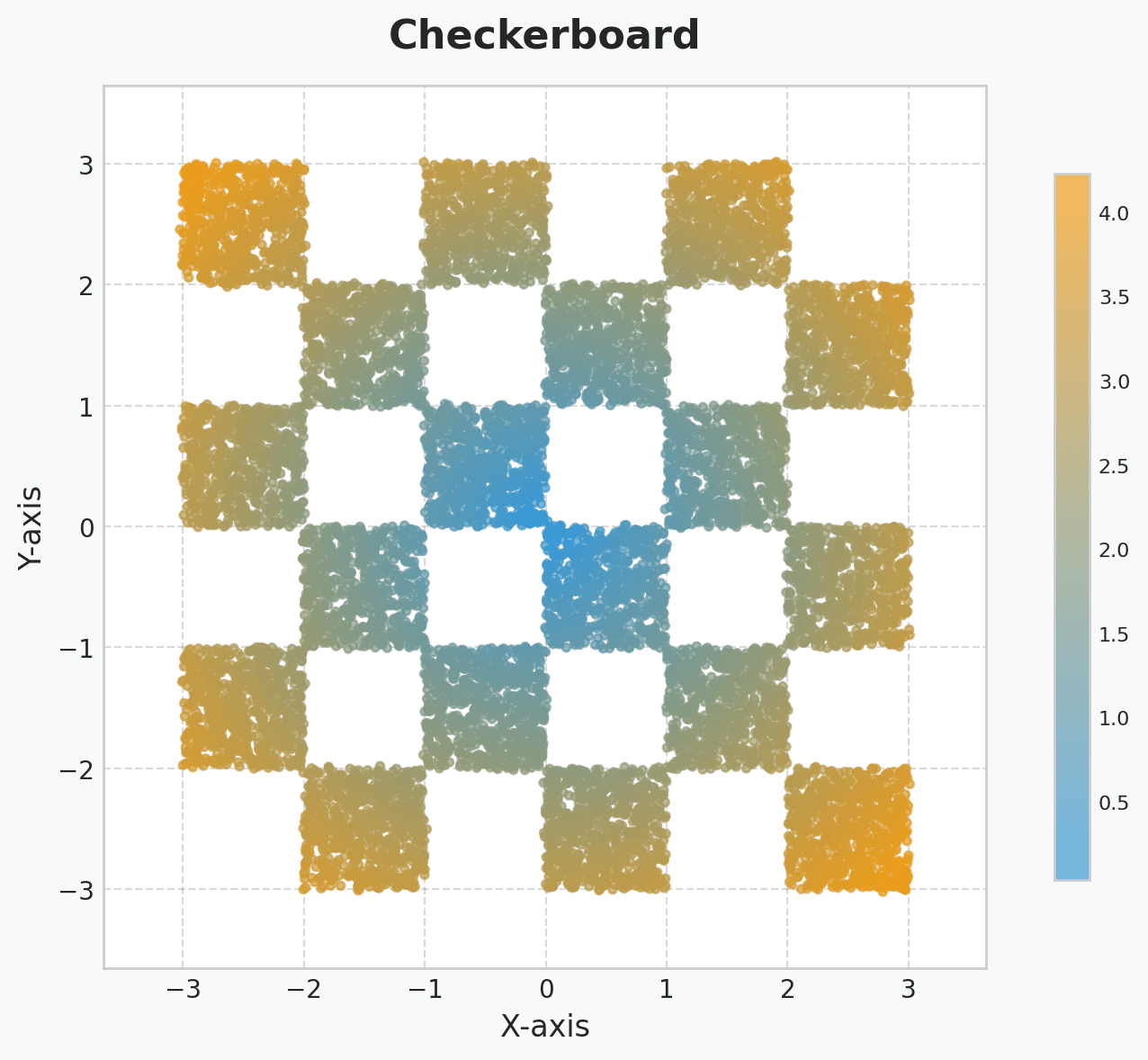

• Checkerboard

  ---



  A grid-like pattern of clusters, challenging for models to capture.

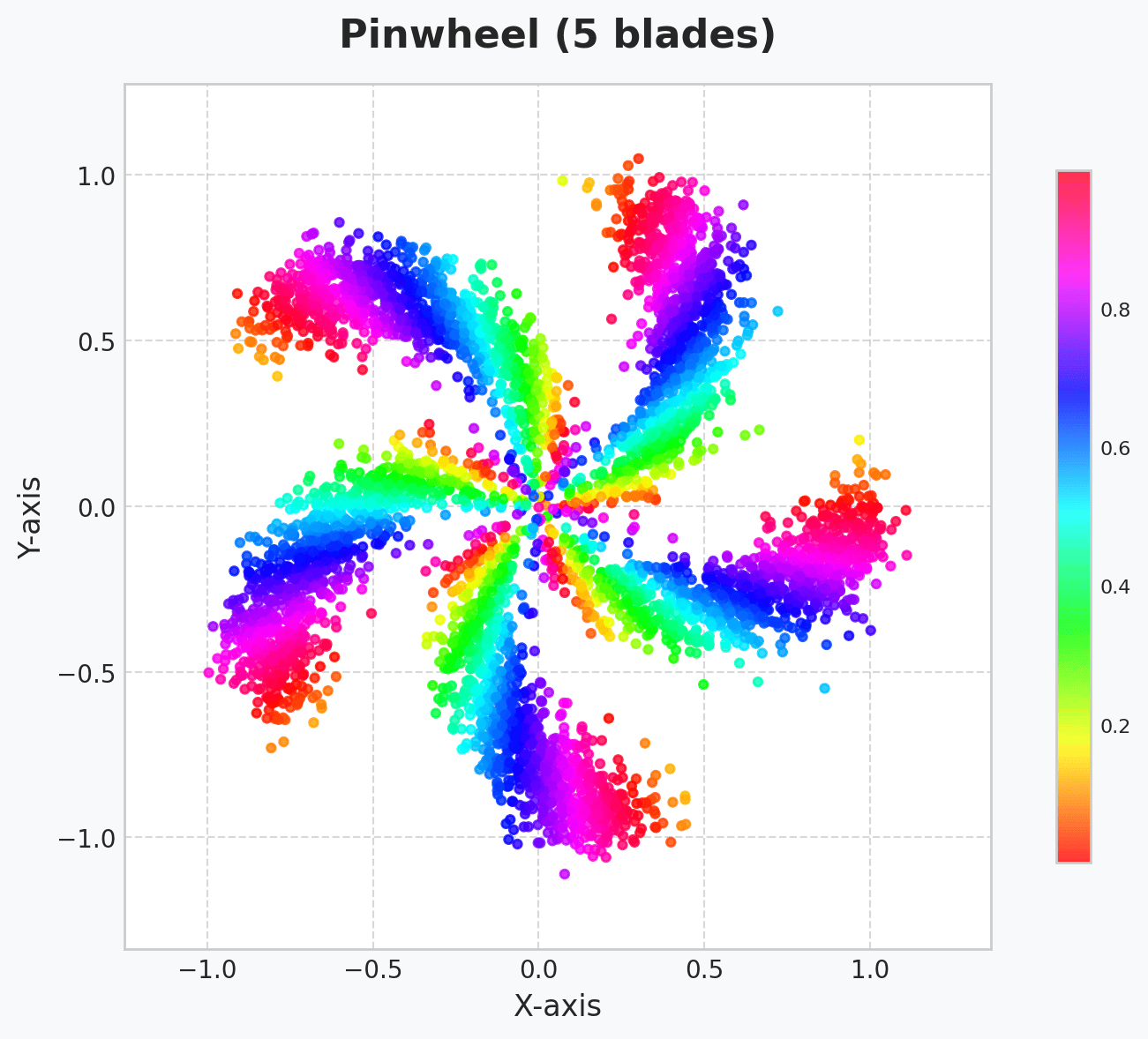

• Pinwheel

  ---



  A dataset with swirling arms, testing a model's ability to learn rotational structures.

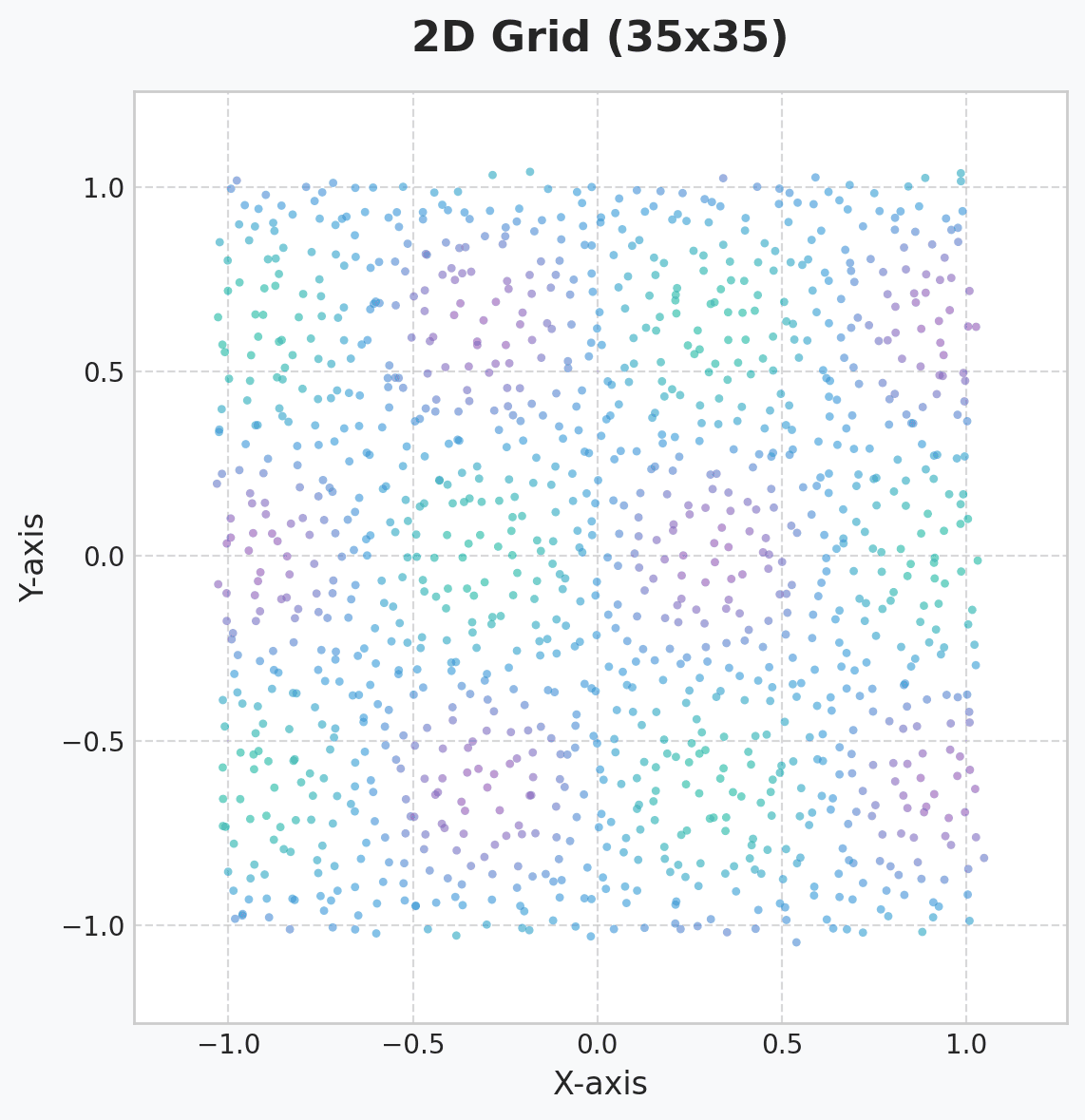

• 2D Grid

  ---



  A uniform grid of points, useful for evaluating coverage and mode detection.

Using with DataLoader

Since these are torch.utils.data.Dataset subclasses, they integrate seamlessly with DataLoader for batching during training.

dataset = TwoMoonsDataset(n_samples=2048, noise=0.05)
dataloader = DataLoader(
    dataset,
    batch_size=256,
    shuffle=True,
    drop_last=True
)

for batch in dataloader:
    # Each batch is a tensor of shape [256, 2]
    print(f"Batch shape: {batch.shape}")
    break

Training Example

Here’s a brief example of how to use a dataset to train an EBM. This is a condensed version of the full training process covered in the next chapter.

import torch.nn as nn
import torch.optim as optim
from torchebm.core import BaseModel
from torchebm.samplers import LangevinDynamics
from torchebm.losses import ContrastiveDivergence

class MLPModel(BaseModel):
    def __init__(self, input_dim=2, hidden_dim=128):
        super().__init__()
        self.network = nn.Sequential(
            nn.Linear(input_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, 1)
        )
    def forward(self, x):
        return self.network(x).squeeze(-1)

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = MLPModel().to(device)

dataset = TwoMoonsDataset(n_samples=2048, noise=0.05, device=device)
dataloader = DataLoader(dataset, batch_size=256, shuffle=True)

sampler = LangevinDynamics(model=model, step_size=0.1, noise_scale=0.1)
loss_fn = ContrastiveDivergence(model=model, sampler=sampler, n_steps=10)
optimizer = optim.Adam(model.parameters(), lr=1e-3)

for epoch in range(5):
    for data_batch in dataloader:
        optimizer.zero_grad()
        loss, _ = loss_fn(data_batch)
        loss.backward()
        optimizer.step()
    print(f"Epoch {epoch+1}, Loss: {loss.item():.4f}")

This example demonstrates the core workflow: creating a dataset, feeding it to a DataLoader, and using the batches to train a model with a sampler and a loss function like ContrastiveDivergence.
