Training an EBM on a Gaussian Mixture

This tutorial demonstrates how to train an energy-based model (EBM) on a 2D Gaussian mixture distribution using the TorchEBM library. We'll build a simple MLP-based energy function, train it with Contrastive Divergence, and visualize the results.

Key Concepts Covered

  • Building an MLP-based energy function
  • Training with Contrastive Divergence
  • Sampling with Langevin dynamics
  • Visualizing the energy landscape and samples

Overview

Energy-based models provide a flexible framework for modeling complex probability distributions. This tutorial focuses on a simple but illustrative example: learning a 2D Gaussian mixture distribution. This is a good starting point because:

  1. It's easy to visualize in 2D
  2. It has multimodal structure that challenges simple models
  3. We can generate synthetic training data with known properties

Prerequisites

Before starting, make sure you have TorchEBM installed:

1
pip install torchebm

We'll also use the following libraries:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import numpy as np

from torchebm.core import BaseEnergyFunction
from torchebm.samplers import LangevinDynamics
from torchebm.losses import ContrastiveDivergence
from torchebm.datasets import GaussianMixtureDataset

Step 1: Define the Energy Function

We'll create a simple MLP (Multi-Layer Perceptron) energy function by subclassing BaseEnergyFunction:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
class MLPEnergy(BaseEnergyFunction):
    """A simple MLP to act as the energy function."""

    def __init__(self, input_dim: int, hidden_dim: int = 64):
        super().__init__()
        self.network = nn.Sequential(
            nn.Linear(input_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, 1),  # Output a single scalar energy value
        )

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        return self.network(x).squeeze(-1)

This energy function maps input points to scalar energy values. Lower energy corresponds to higher probability density.

Step 2: Create the Dataset

TorchEBM provides built-in datasets for testing and development. Let's use the GaussianMixtureDataset:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# Hyperparameters
N_SAMPLES = 500
INPUT_DIM = 2
HIDDEN_DIM = 64
SEED = 42

# Device
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

# Create the dataset
dataset = GaussianMixtureDataset(
    n_samples=N_SAMPLES,
    n_components=4,  # Four Gaussian components
    std=0.1,
    radius=1.5,
    device=device,
    seed=SEED,
)

# Get the full tensor for visualization purposes
real_data_for_plotting = dataset.get_data()
print(f"Data batch_shape: {real_data_for_plotting.shape}")

# Create DataLoader
dataloader = DataLoader(
    dataset,
    batch_size=256,
    shuffle=True,
    drop_last=True,
)

We can visualize the generated data to see what our target distribution looks like:

1
2
3
4
5
6
7
plt.figure(figsize=(6, 6))
plt.scatter(real_data_for_plotting[:, 0].cpu().numpy(),
            real_data_for_plotting[:, 1].cpu().numpy(),
            s=10, alpha=0.5)
plt.title("Target Distribution: 2D Gaussian Mixture")
plt.grid(True, alpha=0.3)
plt.show()

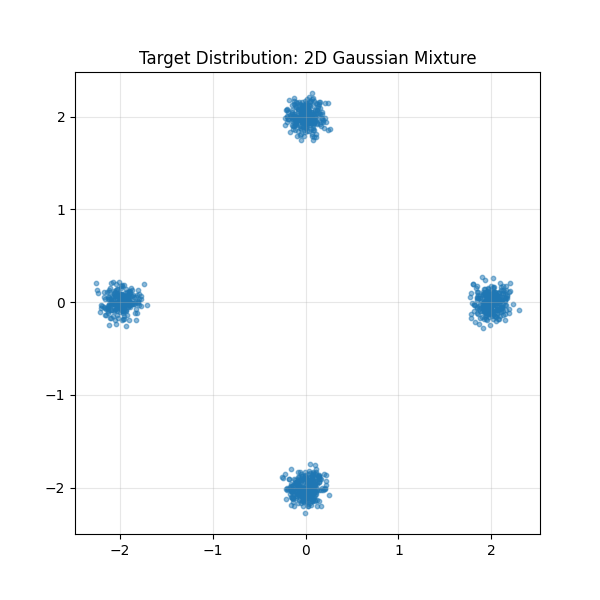

Target Distribution

The target distribution consists of 4 Gaussian components arranged in a circle.

Step 3: Define the Visualization Function

We'll create a function to visualize the energy landscape and generated samples during training:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
@torch.no_grad()
def plot_energy_and_samples(
        energy_fn: BaseEnergyFunction,
        real_samples: torch.Tensor,
        sampler: LangevinDynamics,
        epoch: int,
        device: torch.device,
        grid_size: int = 100,
        plot_range: float = 3.0,
        k_sampling: int = 100,
):
    """Plots the energy surface, real data, and model samples."""
    plt.figure(figsize=(8, 8))

    # Create grid for energy surface plot
    x_coords = torch.linspace(-plot_range, plot_range, grid_size, device=device)
    y_coords = torch.linspace(-plot_range, plot_range, grid_size, device=device)
    xv, yv = torch.meshgrid(x_coords, y_coords, indexing="xy")
    grid = torch.stack([xv.flatten(), yv.flatten()], dim=1)

    # Calculate energy on the grid
    energy_fn.eval()
    energy_values = energy_fn(grid).cpu().numpy().reshape(grid_size, grid_size)

    # Plot energy surface (using probability density for better visualization)
    log_prob_values = -energy_values
    log_prob_values = log_prob_values - np.max(log_prob_values)
    prob_density = np.exp(log_prob_values)

    plt.contourf(
        xv.cpu().numpy(),
        yv.cpu().numpy(),
        prob_density,
        levels=50,
        cmap="viridis",
    )
    plt.colorbar(label="exp(-Energy) (unnormalized density)")

    # Generate samples from the current model
    vis_start_noise = torch.randn(
        500, real_samples.shape[1], device=device
    )
    model_samples_tensor = sampler.sample(x=vis_start_noise, n_steps=k_sampling)
    model_samples = model_samples_tensor.cpu().numpy()

    # Plot real and model samples
    real_samples_np = real_samples.cpu().numpy()
    plt.scatter(
        real_samples_np[:, 0],
        real_samples_np[:, 1],
        s=10,
        alpha=0.5,
        label="Real Data",
        c="white",
        edgecolors="k",
        linewidths=0.5,
    )
    plt.scatter(
        model_samples[:, 0],
        model_samples[:, 1],
        s=10,
        alpha=0.5,
        label="Model Samples",
        c="red",
        edgecolors="darkred",
        linewidths=0.5,
    )

    plt.xlim(-plot_range, plot_range)
    plt.ylim(-plot_range, plot_range)
    plt.title(f"Epoch {epoch}")
    plt.xlabel("X1")
    plt.ylabel("X2")
    plt.legend()
    plt.grid(True, alpha=0.3)
    plt.show()

Visualizing Analytical Energy Functions

For more detailed information on analytical energy-function visualizations and techniques, see our Energy Visualization Guide. You can find visualized 2D toy datasets in Datasets examples.

Step 4: Set Up the Training Components

Now we'll set up the model, sampler, loss function, and optimizer:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# Hyperparameters for training
BATCH_SIZE = 256
EPOCHS = 200
LEARNING_RATE = 1e-3
SAMPLER_STEP_SIZE = 0.1
SAMPLER_NOISE_SCALE = 0.1
CD_K = 10  # MCMC steps for CD
USE_PCD = False  # Whether to use Persistent CD
VISUALIZE_EVERY = 20

# Create the energy model
energy_model = MLPEnergy(INPUT_DIM, HIDDEN_DIM).to(device)

# Set up the Langevin dynamics sampler
sampler = LangevinDynamics(
    energy_function=energy_model,
    step_size=SAMPLER_STEP_SIZE,
    noise_scale=SAMPLER_NOISE_SCALE,
    device=device,
)

# Set up the Contrastive Divergence loss
loss_fn = ContrastiveDivergence(
    energy_function=energy_model,
    sampler=sampler,
    n_steps=CD_K,
    persistent=USE_PCD
).to(device)

# Optimizer
optimizer = optim.Adam(energy_model.parameters(), lr=LEARNING_RATE)

Langevin Dynamics

Langevin dynamics is a sampling method that uses gradient information to explore the energy landscape. It adds noise to the gradient updates, allowing the sampler to overcome energy barriers and explore multimodal distributions.

Persistent Contrastive Divergence

Setting persistent=True enables Persistent Contrastive Divergence (PCD), which maintains a set of persistent chains between parameter updates. This can lead to better exploration of the energy landscape and improved training stability, especially for complex distributions.

Step 5: The Training Loop

Now we're ready to train our energy-based model:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
print("Starting training...")
for epoch in range(EPOCHS):
    energy_model.train()  # Ensure model is in training mode
    epoch_loss = 0.0
    for i, data_batch in enumerate(dataloader):
        # Zero gradients before calculation
        optimizer.zero_grad()

        # Calculate Contrastive Divergence loss
        loss, negative_samples = loss_fn(data_batch)

        # Backpropagate the loss
        loss.backward()

        # Optional: Gradient clipping can help stabilize training
        torch.nn.utils.clip_grad_norm_(energy_model.parameters(), max_norm=1.0)

        # Update the energy function parameters
        optimizer.step()

        epoch_loss += loss.item()

    avg_epoch_loss = epoch_loss / len(dataloader)
    print(f"Epoch [{epoch+1}/{EPOCHS}], Average Loss: {avg_epoch_loss:.4f}")

    # Visualize progress periodically
    if (epoch + 1) % VISUALIZE_EVERY == 0 or epoch == 0:
        print("Generating visualization...")
        energy_model.eval()  # Set model to evaluation mode for visualization
        plot_energy_and_samples(
            energy_fn=energy_model,
            real_samples=real_data_for_plotting,
            sampler=sampler,
            epoch=epoch + 1,
            device=device,
            plot_range=2.5,
            k_sampling=200,  # More steps for better visualization
        )

Training Progress Visualization

  • Epoch 10

    Training - Epoch 10

    Early training: The model has begun to identify the four modes.

  • Epoch 20

    Training - Epoch 20

    Continued progress: The energy landscape is taking shape.

  • Epoch 30

    Training - Epoch 30

    Mid-training: The modes are becoming well-defined.

  • Epoch 100

    Training - Epoch 100

    Final model: The energy function has learned the four-mode structure.

As training progresses, we can see how the energy landscape evolves to capture the four-mode structure of our target distribution. The brighter regions in the contour plot represent areas of higher probability density (lower energy), and the red points show samples drawn from the model.

Step 6: Final Evaluation

After training, we generate a final set of samples from our model for evaluation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# Final visualization
print("Generating final visualization...")
energy_model.eval()
plot_energy_and_samples(
    energy_fn=energy_model,
    real_samples=real_data_for_plotting,
    sampler=sampler,
    epoch=EPOCHS,
    device=device,
    plot_range=2.5,
    k_sampling=500,  # More steps for better mixing
)

Understanding the Results

Our model has successfully learned the four-mode structure of the target distribution. The contour plot shows four distinct regions of low energy (high probability) corresponding to the four Gaussian components.

The red points (samples from our model) closely match the distribution of the white points (real data), indicating that our energy-based model has effectively captured the target distribution.

This example demonstrates the core workflow for training energy-based models with TorchEBM:

  1. Define an energy function
  2. Set up a sampler for generating negative samples
  3. Use Contrastive Divergence for training
  4. Monitor progress through visualization

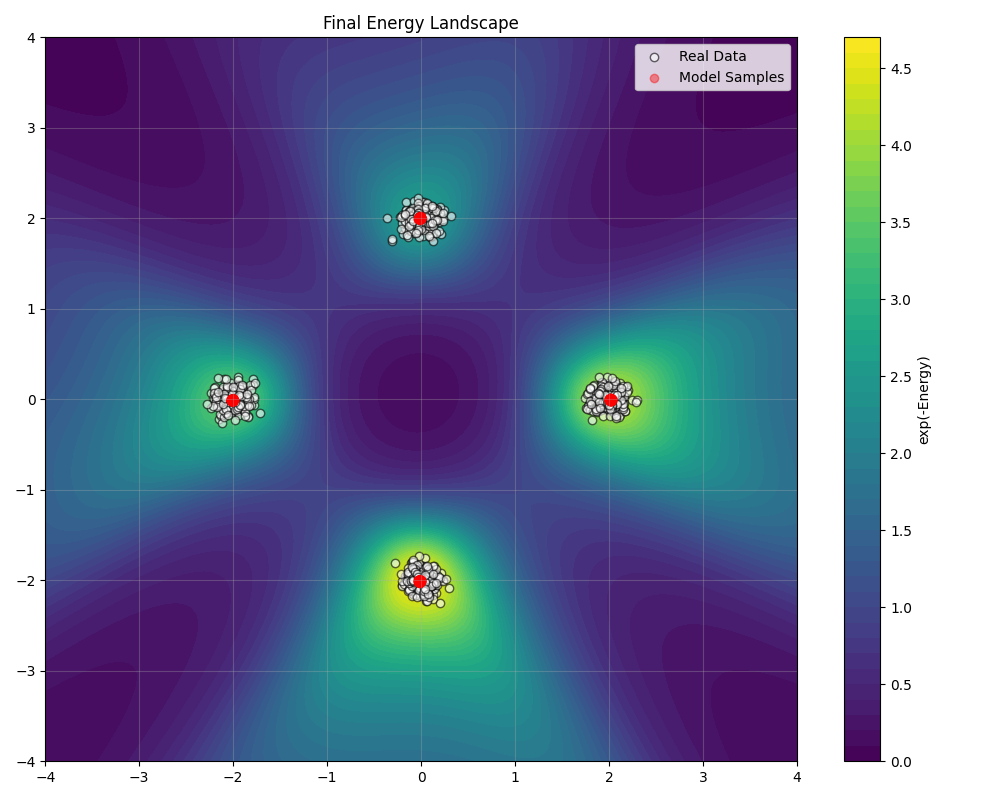

Final Energy Landscape

The final energy landscape shows that the model has successfully learned the four-mode structure of the target distribution.

Tips for Training EBMs

When training your own energy-based models, consider these tips:

  • Sampling Parameters

    The step size and noise scale of the Langevin dynamics sampler are critical. Too large values can lead to unstable sampling, while too small values may result in poor mixing.

    1
2
3
4
5
6
    # Try different step sizes and noise scales
sampler = LangevinDynamics(
    energy_function=energy_model,
    step_size=0.01,  # Smaller for stability
    noise_scale=0.005  # Smaller for more accurate sampling
)

  • CD Steps

    The number of MCMC steps in Contrastive Divergence affects the quality of negative samples. More steps generally lead to better results but increase computation time.

    1
2
3
4
5
6
7
    # For complex distributions, use more steps
loss_fn = ContrastiveDivergence(
    energy_function=energy_model,
    sampler=sampler,
    n_steps=20,  # Increase for better samples
    persistent=True
)

  • Learning Rate

    Energy-based models can be sensitive to the learning rate. Start with a smaller learning rate and gradually increase if needed.

    1
2
3
4
5
6
    # Use a smaller learning rate for stability
optimizer = optim.Adam(
    energy_model.parameters(),
    lr=0.0005,  # Start small
    weight_decay=1e-5  # Regularization helps
)

  • Neural Network Architecture

    The choice of architecture and activation function can affect the smoothness of the energy landscape.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
    # Try different architectures and activations
self.network = nn.Sequential(
    nn.Linear(input_dim, hidden_dim),
    nn.SiLU(),  # Smoother than ReLU
    nn.Linear(hidden_dim, hidden_dim * 2),  # Wider middle layer
    nn.SiLU(),
    nn.Linear(hidden_dim * 2, hidden_dim),
    nn.SiLU(),
    nn.Linear(hidden_dim, 1)
)

Complete Code

Here's the complete code for this example:

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import numpy as np

from torchebm.core import BaseEnergyFunction
from torchebm.samplers import LangevinDynamics
from torchebm.losses import ContrastiveDivergence
from torchebm.datasets import GaussianMixtureDataset


class MLPEnergy(BaseEnergyFunction):
    """A simple MLP to act as the energy function."""

    def __init__(self, input_dim: int, hidden_dim: int = 64):
        super().__init__()
        self.network = nn.Sequential(
            nn.Linear(input_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, 1),  # Output a single scalar energy value
        )

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        return self.network(x).squeeze(-1)


@torch.no_grad()
def plot_energy_and_samples(
        energy_fn, real_samples, sampler, epoch, device, grid_size=100, plot_range=3.0, k_sampling=100
):
    """Plots the energy surface, real data, and model samples."""
    plt.figure(figsize=(8, 8))

    # Create grid for energy surface plot
    x_coords = torch.linspace(-plot_range, plot_range, grid_size, device=device)
    y_coords = torch.linspace(-plot_range, plot_range, grid_size, device=device)
    xv, yv = torch.meshgrid(x_coords, y_coords, indexing="xy")
    grid = torch.stack([xv.flatten(), yv.flatten()], dim=1)

    # Calculate energy on the grid
    energy_fn.eval()
    energy_values = energy_fn(grid).cpu().numpy().reshape(grid_size, grid_size)

    # Plot energy surface (using probability density for better visualization)
    log_prob_values = -energy_values
    log_prob_values = log_prob_values - np.max(log_prob_values)
    prob_density = np.exp(log_prob_values)

    plt.contourf(
        xv.cpu().numpy(),
        yv.cpu().numpy(),
        prob_density,
        levels=50,
        cmap="viridis",
    )
    plt.colorbar(label="exp(-Energy) (unnormalized density)")

    # Generate samples from the current model
    vis_start_noise = torch.randn(500, real_samples.shape[1], device=device)
    model_samples_tensor = sampler.sample(x=vis_start_noise, n_steps=k_sampling)
    model_samples = model_samples_tensor.cpu().numpy()

    # Plot real and model samples
    real_samples_np = real_samples.cpu().numpy()
    plt.scatter(
        real_samples_np[:, 0],
        real_samples_np[:, 1],
        s=10,
        alpha=0.5,
        label="Real Data",
        c="white",
        edgecolors="k",
        linewidths=0.5,
    )
    plt.scatter(
        model_samples[:, 0],
        model_samples[:, 1],
        s=10,
        alpha=0.5,
        label="Model Samples",
        c="red",
        edgecolors="darkred",
        linewidths=0.5,
    )

    plt.xlim(-plot_range, plot_range)
    plt.ylim(-plot_range, plot_range)
    plt.title(f"Epoch {epoch}")
    plt.xlabel("X1")
    plt.ylabel("X2")
    plt.legend()
    plt.grid(True, alpha=0.3)
    plt.savefig(f"energy_landscape_epoch_{epoch}.png")
    plt.show()


def main():
    # Hyperparameters
    N_SAMPLES = 500
    INPUT_DIM = 2
    HIDDEN_DIM = 64
    BATCH_SIZE = 256
    EPOCHS = 200
    LEARNING_RATE = 1e-3
    SAMPLER_STEP_SIZE = 0.1
    SAMPLER_NOISE_SCALE = 0.1
    CD_K = 10
    USE_PCD = False
    VISUALIZE_EVERY = 20
    SEED = 42

    # Device
    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
    print(f"Using device: {device}")

    # Data Loading
    dataset = GaussianMixtureDataset(
        n_samples=N_SAMPLES,
        n_components=4,
        std=0.1,
        radius=1.5,
        device=device,
        seed=SEED,
    )

    # Get the full tensor for visualization purposes
    real_data_for_plotting = dataset.get_data()
    print(f"Data batch_shape: {real_data_for_plotting.shape}")

    # Create DataLoader
    dataloader = DataLoader(
        dataset,
        batch_size=BATCH_SIZE,
        shuffle=True,
        drop_last=True,
    )

    # Model Components
    energy_model = MLPEnergy(INPUT_DIM, HIDDEN_DIM).to(device)
    sampler = LangevinDynamics(
        energy_function=energy_model,
        step_size=SAMPLER_STEP_SIZE,
        noise_scale=SAMPLER_NOISE_SCALE,
        device=device,
    )
    loss_fn = ContrastiveDivergence(
        energy_function=energy_model, sampler=sampler, k_steps=CD_K, persistent=USE_PCD
    ).to(device)

    # Optimizer
    optimizer = optim.Adam(energy_model.parameters(), lr=LEARNING_RATE)

    print("Starting training...")
    for epoch in range(EPOCHS):
        energy_model.train()
        epoch_loss = 0.0
        for i, data_batch in enumerate(dataloader):
            optimizer.zero_grad()
            loss, negative_samples = loss_fn(data_batch)
            loss.backward()
            torch.nn.utils.clip_grad_norm_(energy_model.parameters(), max_norm=1.0)
            optimizer.step()
            epoch_loss += loss.item()

        avg_epoch_loss = epoch_loss / len(dataloader)
        print(f"Epoch [{epoch + 1}/{EPOCHS}], Average Loss: {avg_epoch_loss:.4f}")

        if (epoch + 1) % VISUALIZE_EVERY == 0 or epoch == 0:
            print("Generating visualization...")
            energy_model.eval()
            plot_energy_and_samples(
                energy_fn=energy_model,
                real_samples=real_data_for_plotting,
                sampler=sampler,
                epoch=epoch + 1,
                device=device,
                plot_range=2.5,
                k_sampling=200,
            )

    print("Training finished.")

    # Final visualization
    print("Generating final visualization...")
    energy_model.eval()
    plot_energy_and_samples(
        energy_fn=energy_model,
        real_samples=real_data_for_plotting,
        sampler=sampler,
        epoch=EPOCHS,
        device=device,
        plot_range=2.5,
        k_sampling=500,
    )


if __name__ == "__main__":
    main()

Conclusion

In this tutorial, we've learned how to:

  1. Define a simple energy-based model using an MLP
  2. Generate synthetic data from a 2D Gaussian mixture using TorchEBM's dataset utilities
  3. Train the model using Contrastive Divergence and Langevin dynamics
  4. Visualize the energy landscape and generated samples throughout training

Energy-based models provide a powerful and flexible framework for modeling complex probability distributions. While we've focused on a simple 2D example, the same principles apply to more complex, high-dimensional distributions.
