Dataset Classes

The torchebm library provides a variety of 2D synthetic datasets through the torchebm.datasets module. These datasets are implemented as PyTorch Dataset classes for easy integration with DataLoaders. This walkthrough explores each dataset class with examples and visualizations.

Setup

First, let's import the necessary packages:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
import torch
import numpy as np
import matplotlib.pyplot as plt
from torchebm.datasets import (
    GaussianMixtureDataset, EightGaussiansDataset, TwoMoonsDataset,
    SwissRollDataset, CircleDataset, CheckerboardDataset,
    PinwheelDataset, GridDataset
)

# Set random seed for reproducibility
torch.manual_seed(42)
np.random.seed(42)

# Helper function to visualize a dataset
def visualize_dataset(data, title, figsize=(5, 5)):
    plt.figure(figsize=figsize)
    plt.scatter(data[:, 0], data[:, 1], s=5, alpha=0.6)
    plt.title(title)
    plt.grid(True, alpha=0.3)
    plt.axis('equal')
    plt.tight_layout()
    plt.show()

Dataset Types

1. Gaussian Mixture

Gaussian Mixture

Generate points from a mixture of Gaussian distributions arranged in a circle.

This dataset generator is useful for testing mode-seeking behavior in energy-based models.

Parameters:

  • n_samples: Number of samples to generate
  • n_components: Number of Gaussian components (modes)
  • std: Standard deviation of each Gaussian
  • radius: Radius of the circle on which centers are placed
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# Generate 1000 samples from a 6-component Gaussian mixture
gmm_dataset = GaussianMixtureDataset(
    n_samples=1000,
    n_components=6,
    std=0.05,
    radius=1.0,
    seed=42
)
gmm_data = gmm_dataset.get_data()
visualize_dataset(gmm_data, "Gaussian Mixture (6 components)")

Gaussian Mixture

Gaussian Mixture with 6 components

2. Eight Gaussians

Eight Gaussians

A specific case of Gaussian mixture with 8 components arranged at compass and diagonal points.

This is a common benchmark distribution in energy-based modeling literature.

Parameters:

  • n_samples: Number of samples to generate
  • std: Standard deviation of each component
  • scale: Scaling factor for the centers
1
2
3
4
5
6
7
8
9
# Generate 1000 samples from the 8 Gaussians distribution
eight_gauss_dataset = EightGaussiansDataset(
    n_samples=1000,
    std=0.02,
    scale=2.0,
    seed=42
)
eight_gauss_data = eight_gauss_dataset.get_data()
visualize_dataset(eight_gauss_data, "Eight Gaussians")

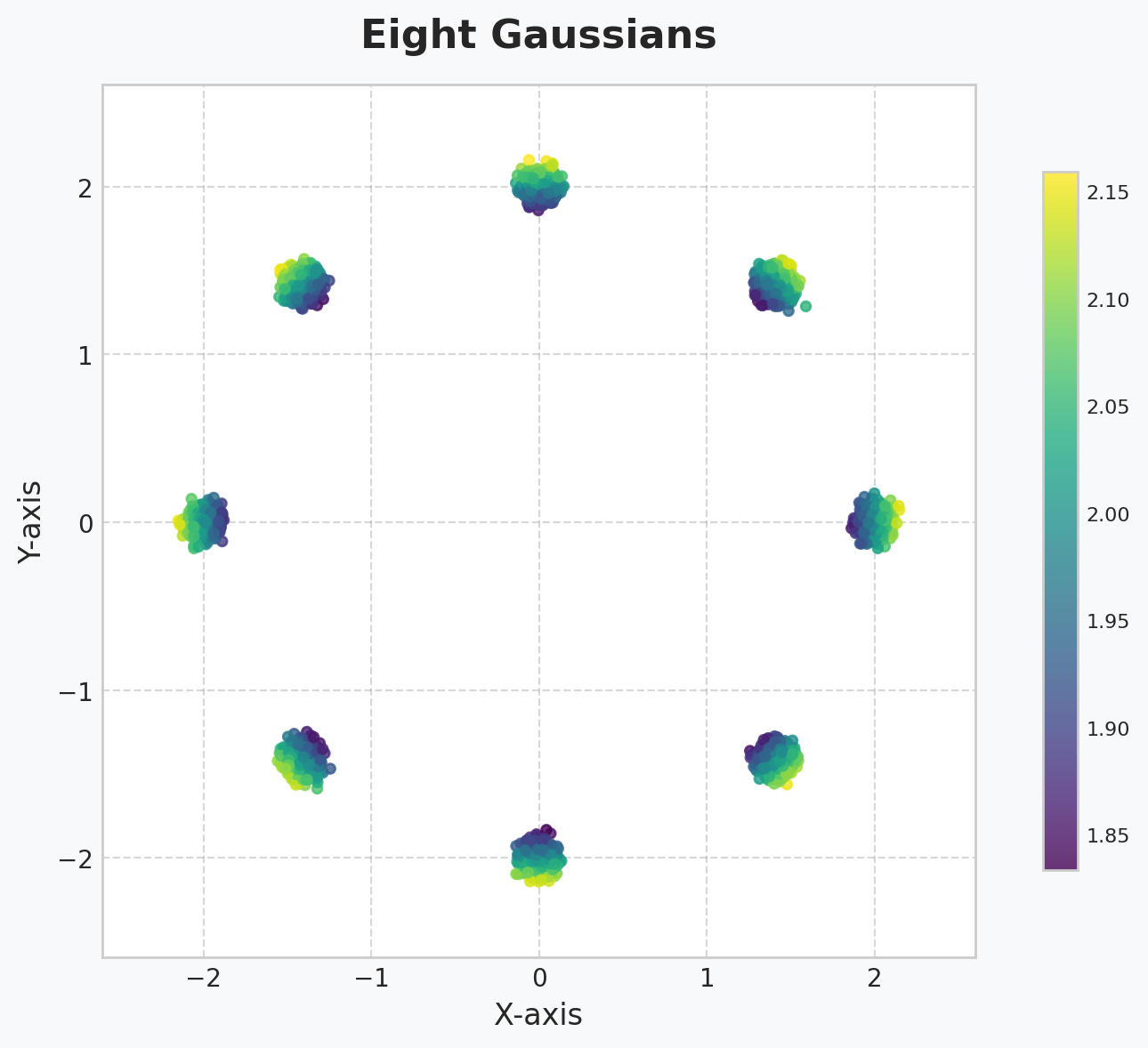

Eight Gaussians

Eight Gaussians distribution

3. Two Moons

Two Moons

Generate the classic "two moons" dataset with two interleaving half-circles.

This dataset is excellent for testing classification, clustering, and density estimation algorithms due to its non-linear separation boundary.

Parameters:

  • n_samples: Number of samples to generate
  • noise: Standard deviation of Gaussian noise added
1
2
3
4
5
6
7
8
# Generate 1000 samples from the Two Moons distribution
moons_dataset = TwoMoonsDataset(
    n_samples=1000,
    noise=0.05,
    seed=42
)
moons_data = moons_dataset.get_data()
visualize_dataset(moons_data, "Two Moons")

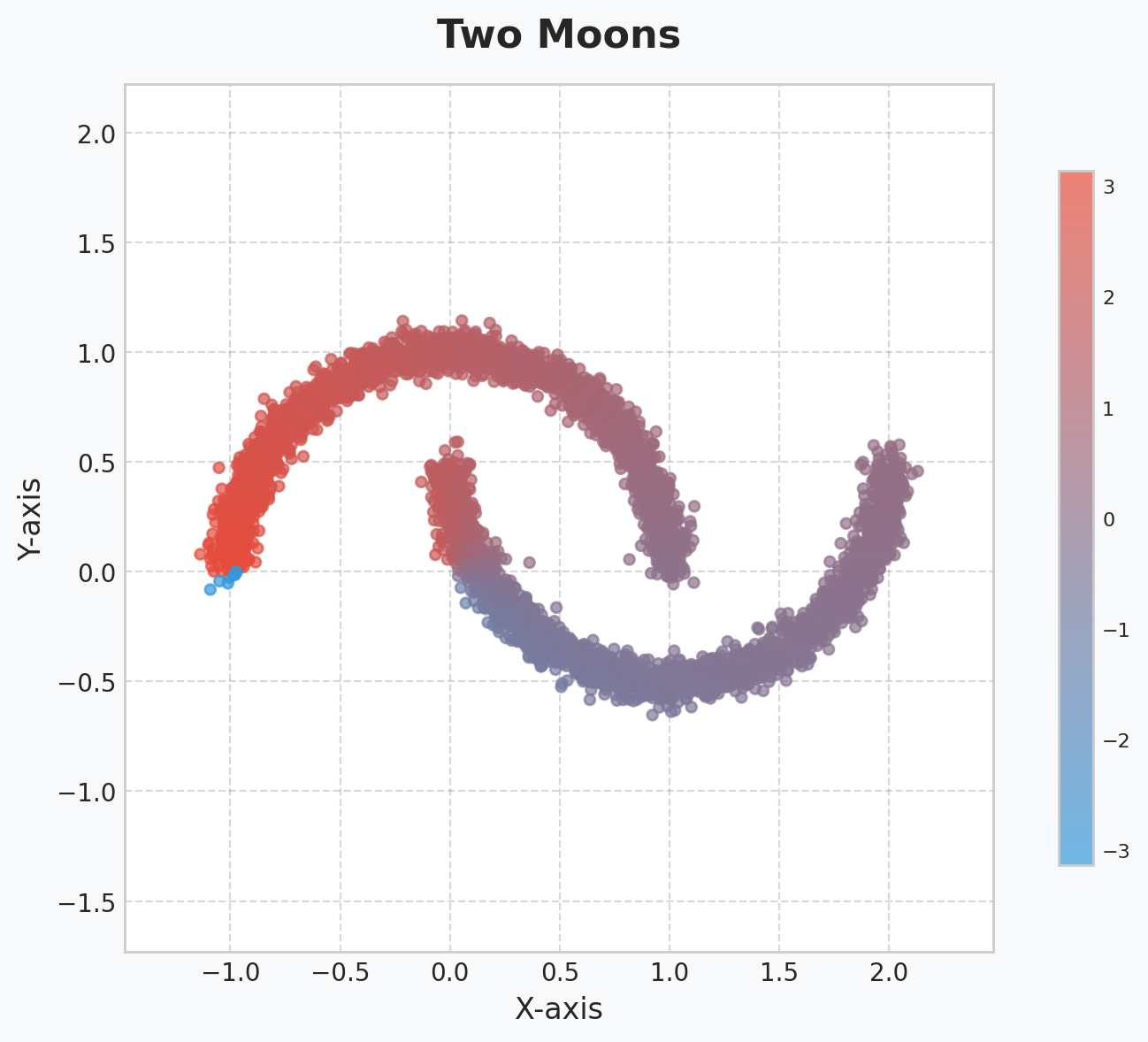

Two Moons

Two Moons distribution

4. Swiss Roll

Swiss Roll

Generate the 2D Swiss roll dataset with a spiral structure.

The Swiss roll is a classic example of a nonlinear manifold.

Parameters:

  • n_samples: Number of samples to generate
  • noise: Standard deviation of Gaussian noise added
  • arclength: Controls how many rolls (pi*arclength)
1
2
3
4
5
6
7
8
9
# Generate 1000 samples from the Swiss Roll distribution
swiss_roll_dataset = SwissRollDataset(
    n_samples=1000,
    noise=0.05,
    arclength=3.0,
    seed=42
)
swiss_roll_data = swiss_roll_dataset.get_data()
visualize_dataset(swiss_roll_data, "Swiss Roll")

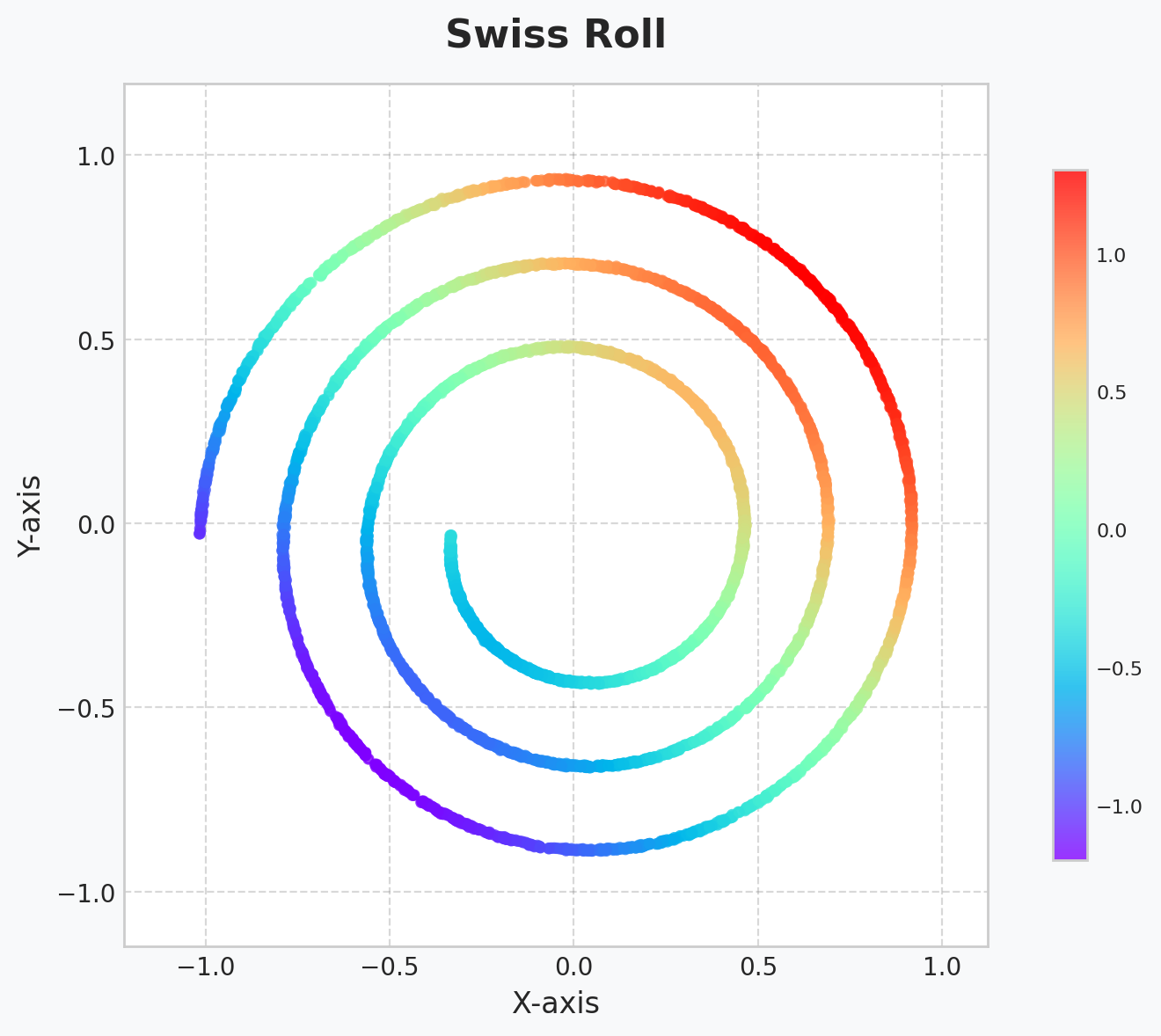

Swiss Roll

Swiss Roll distribution

5. Circle

Circle

Generate points uniformly distributed on a circle with optional noise.

This simple distribution is useful for testing density estimation on a 1D manifold embedded in 2D space.

Parameters:

  • n_samples: Number of samples to generate
  • noise: Standard deviation of Gaussian noise added
  • radius: Radius of the circle
1
2
3
4
5
6
7
8
9
# Generate 1000 samples from a Circle distribution
circle_dataset = CircleDataset(
    n_samples=1000,
    noise=0.05,
    radius=1.0,
    seed=42
)
circle_data = circle_dataset.get_data()
visualize_dataset(circle_data, "Circle")

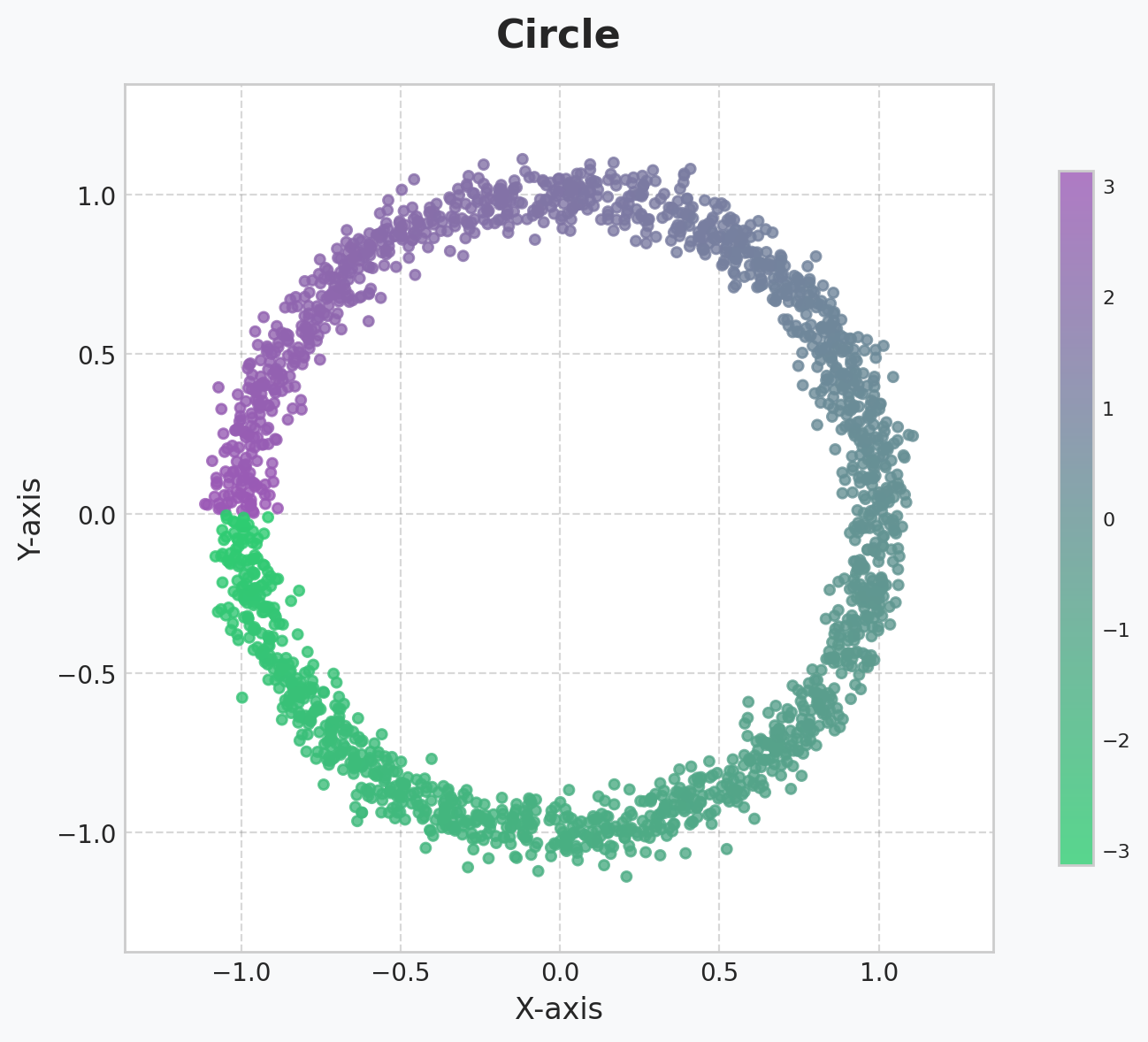

Circle

Circle distribution

6. Checkerboard

Checkerboard

Generate points in a 2D checkerboard pattern with alternating high and low density regions.

The checkerboard pattern creates multiple modes in a regular structure, challenging an EBM's ability to capture complex multimodal distributions.

Parameters:

  • n_samples: Target number of samples
  • range_limit: Defines the square region [-lim, lim] x [-lim, lim]
  • noise: Small Gaussian noise added to points
1
2
3
4
5
6
7
8
9
# Generate 1000 samples from a Checkerboard distribution
checkerboard_dataset = CheckerboardDataset(
    n_samples=1000,
    range_limit=4.0,
    noise=0.01,
    seed=42
)
checkerboard_data = checkerboard_dataset.get_data()
visualize_dataset(checkerboard_data, "Checkerboard")

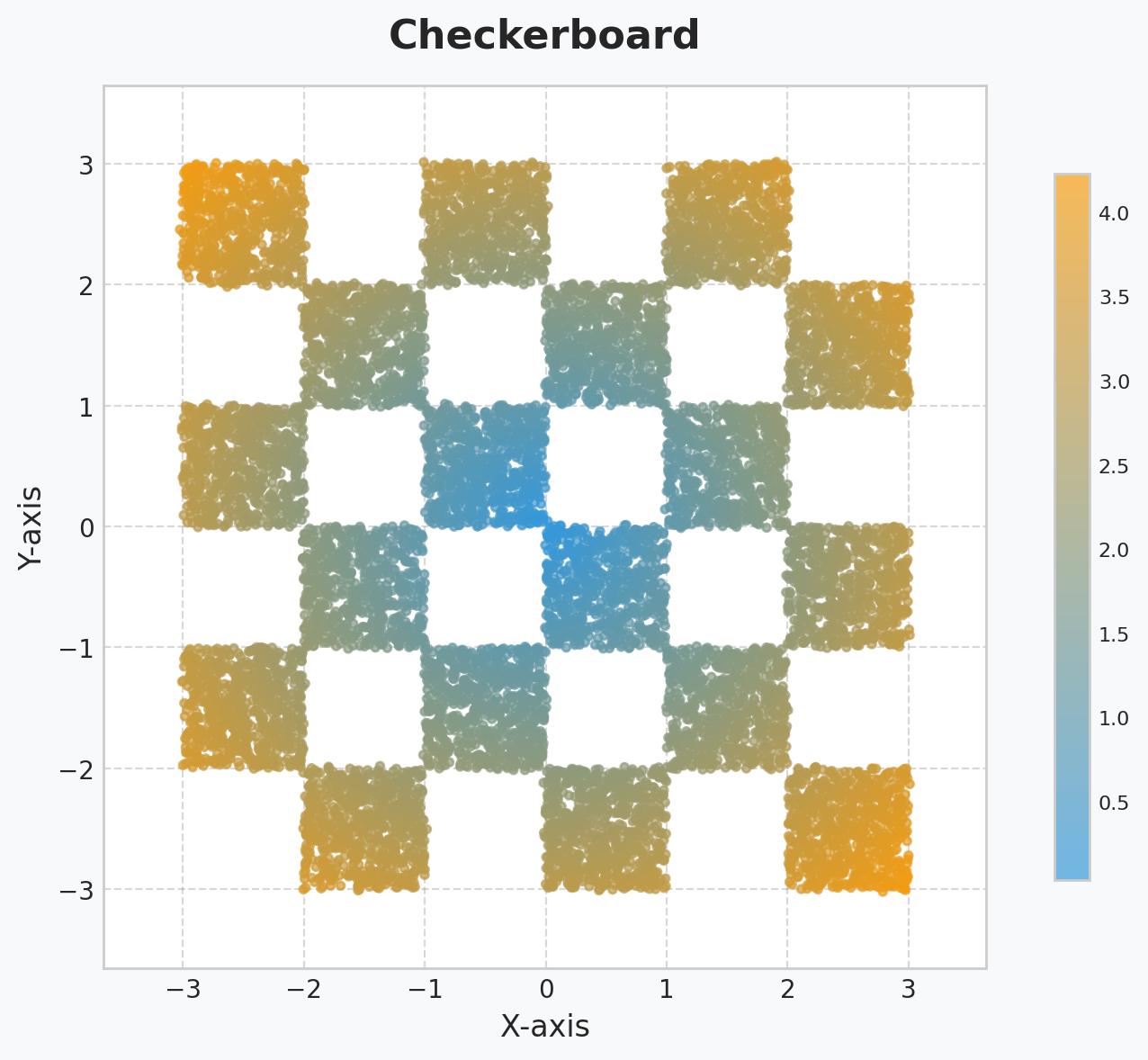

Checkerboard

Checkerboard distribution

7. Pinwheel

Pinwheel

Generate the pinwheel dataset with curved blades spiraling outward.

The pinwheel dataset is highly configurable:

  • Adjust the number of blades with n_classes
  • Control blade length with radial_scale
  • Control blade thickness with angular_scale
  • Control how tightly the blades spiral with spiral_scale

Parameters:

  • n_samples: Number of samples to generate
  • n_classes: Number of 'blades' in the pinwheel
  • noise: Standard deviation of Gaussian noise
  • radial_scale: Scales the maximum radius of the points
  • angular_scale: Controls blade thickness
  • spiral_scale: Controls how tightly blades spiral
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# Generate 1000 samples from a Pinwheel distribution with 5 blades
pinwheel_dataset = PinwheelDataset(
    n_samples=1000,
    n_classes=5,
    noise=0.05,
    radial_scale=2.0,
    angular_scale=0.1,
    spiral_scale=5.0,
    seed=42
)
pinwheel_data = pinwheel_dataset.get_data()
visualize_dataset(pinwheel_data, "Pinwheel (5 blades)")

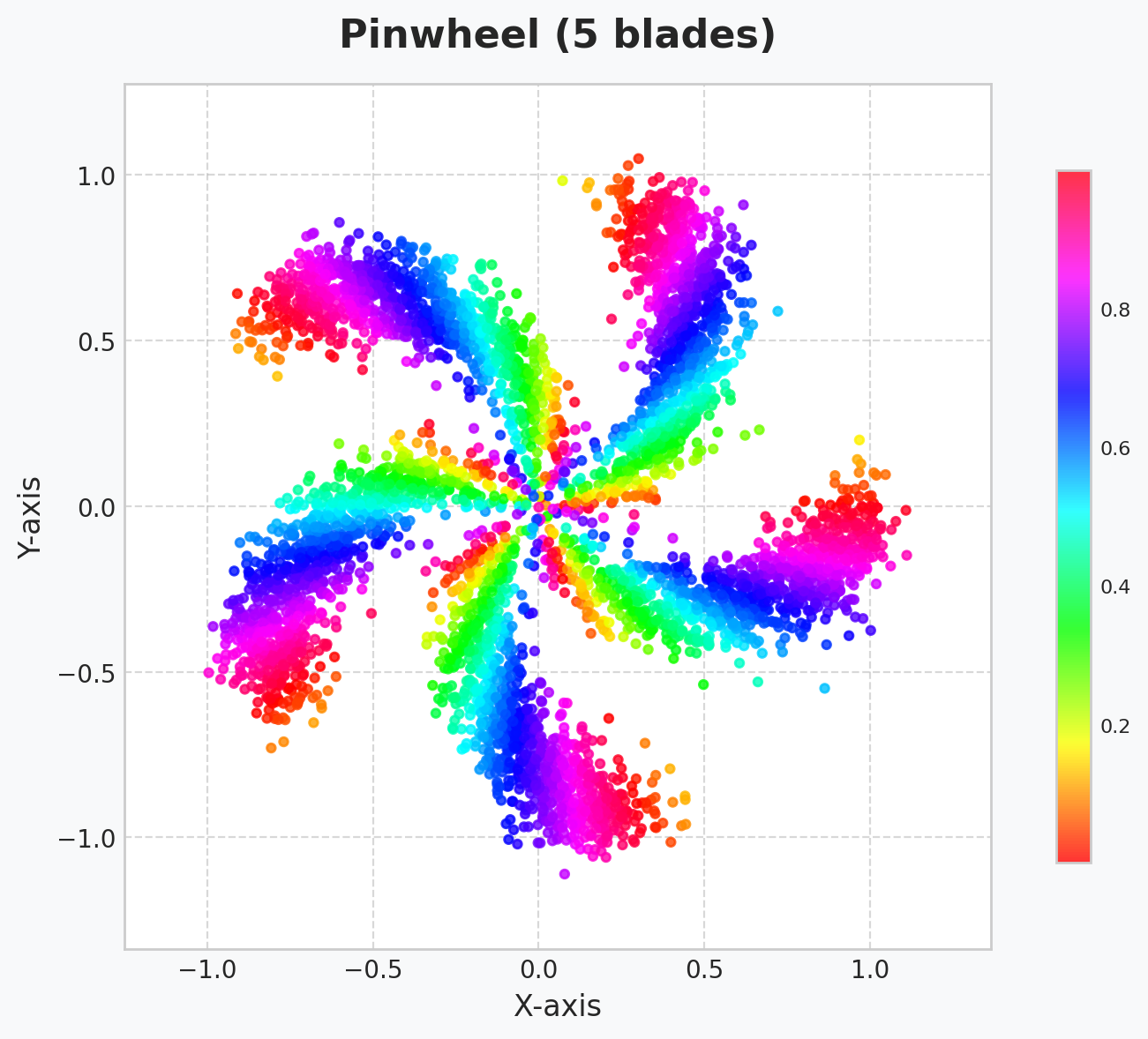

Pinwheel

Pinwheel distribution with 5 blades

8. 2D Grid

2D Grid

Generate points on a regular 2D grid with optional noise.

This is useful for creating test points to evaluate model predictions across a regular spatial arrangement.

Parameters:

  • n_samples_per_dim: Number of points along each dimension
  • range_limit: Defines the square region [-lim, lim] x [-lim, lim]
  • noise: Standard deviation of Gaussian noise added
1
2
3
4
5
6
7
8
9
# Generate a 20x20 grid of points
grid_dataset = GridDataset(
    n_samples_per_dim=20,
    range_limit=1.0,
    noise=0.01,
    seed=42
)
grid_data = grid_dataset.get_data()
visualize_dataset(grid_data, "2D Grid (20x20)")

2D Grid

2D Grid with 20x20 points

Usage Examples

Using with DataLoader

One of the key advantages of the dataset classes is their compatibility with PyTorch's DataLoader for efficient batch processing:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
from torch.utils.data import DataLoader

# Create a dataset
dataset = GaussianMixtureDataset(n_samples=2000, n_components=8, std=0.1, seed=42)

# Create a DataLoader
dataloader = DataLoader(
    dataset,
    batch_size=32,
    shuffle=True,
    drop_last=True
)

# Iterate through batches
for batch in dataloader:
    # Each batch is a tensor of batch_shape [batch_size, 2]
    print(f"Batch batch_shape: {batch.shape}")
    # Process the batch...
    break  # Just showing the first batch

Comparing Multiple Datasets

You can easily generate and compare multiple datasets:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# Create a figure with multiple datasets
plt.figure(figsize=(15, 10))

# Generate datasets
datasets = [
    (GaussianMixtureDataset(1000, 8, 0.05, seed=42).get_data(), "Gaussian Mixture"),
    (TwoMoonsDataset(1000, 0.05, seed=42).get_data(), "Two Moons"),
    (SwissRollDataset(1000, 0.05, seed=42).get_data(), "Swiss Roll"),
    (CircleDataset(1000, 0.05, seed=42).get_data(), "Circle"),
    (CheckerboardDataset(1000, 4.0, 0.01, seed=42).get_data(), "Checkerboard"),
    (PinwheelDataset(1000, 5, 0.05, seed=42).get_data(), "Pinwheel")
]

# Plot each dataset
for i, (data, title) in enumerate(datasets):
    plt.subplot(2, 3, i+1)
    plt.scatter(data[:, 0], data[:, 1], s=3, alpha=0.6)
    plt.title(title)
    plt.grid(True, alpha=0.3)
    plt.axis('equal')

plt.tight_layout()
plt.show()

- Gaussian Mixture - Two Moons - Swiss Roll - Circle - Checkerboard - Pinwheel

Device Support

All dataset classes support placing tensors directly on specific devices:

1
2
3
4
5
# Generate data on GPU if available
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
gpu_dataset = GaussianMixtureDataset(1000, 4, 0.1, device=device, seed=42)
gpu_data = gpu_dataset.get_data()
print(f"Data is on: {gpu_data.device}")

Training Example

Here's a simplified example of using these datasets for training an energy-based model, similar to what's shown in the mlp_cd_training.py example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
# Imports
from torchebm.core import BaseEnergyFunction
from torchebm.samplers import LangevinDynamics
from torchebm.losses import ContrastiveDivergence
import torch.nn as nn
import torch.optim as optim

# Define an energy function
class MLPEnergy(BaseEnergyFunction):
    def __init__(self, input_dim=2, hidden_dim=64):
        super().__init__()
        self.network = nn.Sequential(
            nn.Linear(input_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, hidden_dim),
            nn.ReLU(),
            nn.Linear(hidden_dim, 1)
        )

    def forward(self, x):
        return self.network(x).squeeze(-1)

# Setup training
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

# Create dataset directly with device specification
dataset = TwoMoonsDataset(n_samples=3000, noise=0.05, seed=42, device=device)
dataloader = DataLoader(dataset, batch_size=256, shuffle=True, drop_last=True)

# Model components
energy_model = MLPEnergy(input_dim=2, hidden_dim=16).to(device)
sampler = LangevinDynamics(
    energy_function=energy_model,
    step_size=0.1,
    noise_scale=0.1,
    device=device
)
loss_fn = ContrastiveDivergence(
    energy_function=energy_model,
    sampler=sampler,
    n_steps=10
).to(device)

# Optimizer
optimizer = optim.Adam(energy_model.parameters(), lr=1e-3)

# Training loop (simplified)
for epoch in range(5):  # Just a few epochs for demonstration
    for data_batch in dataloader:
        optimizer.zero_grad()
        loss, _ = loss_fn(data_batch)
        loss.backward()
        optimizer.step()
    print(f"Epoch {epoch+1}, Loss: {loss.item():.4f}")
  • Dataset: TwoMoonsDataset placed directly on device
  • Energy Function: Simple MLP implementing BaseEnergyFunction
  • Sampler: LangevinDynamics for generating samples
  • Loss: ContrastiveDivergence for EBM training
  • Training Loop: Standard PyTorch pattern with DataLoader

For more detailed examples, see Training Energy Models.

Summary

Key Features

  • Dataset Variety: 8 distinct 2D distributions for different testing scenarios
  • PyTorch Integration: Built as torch.utils.data.Dataset subclasses
  • Device Support: Create datasets directly on CPU or GPU
  • Configurability: Extensive parameterization for all distributions
  • Reproducibility: Seed support for deterministic generation

These dataset classes provide diverse 2D distributions for testing energy-based models. Each distribution has different characteristics that can challenge different aspects of model learning:

Dataset Testing Focus
Gaussian Mixtures Mode-seeking behavior
Two Moons Non-linear decision boundaries
Swiss Roll & Circle Manifold learning capabilities
Checkerboard Multiple modes in regular patterns
Pinwheel Complex spiral structure with varying density

The class-based implementation provides seamless integration with PyTorch's DataLoader system, making it easy to incorporate these datasets into your training pipeline.

See Also
